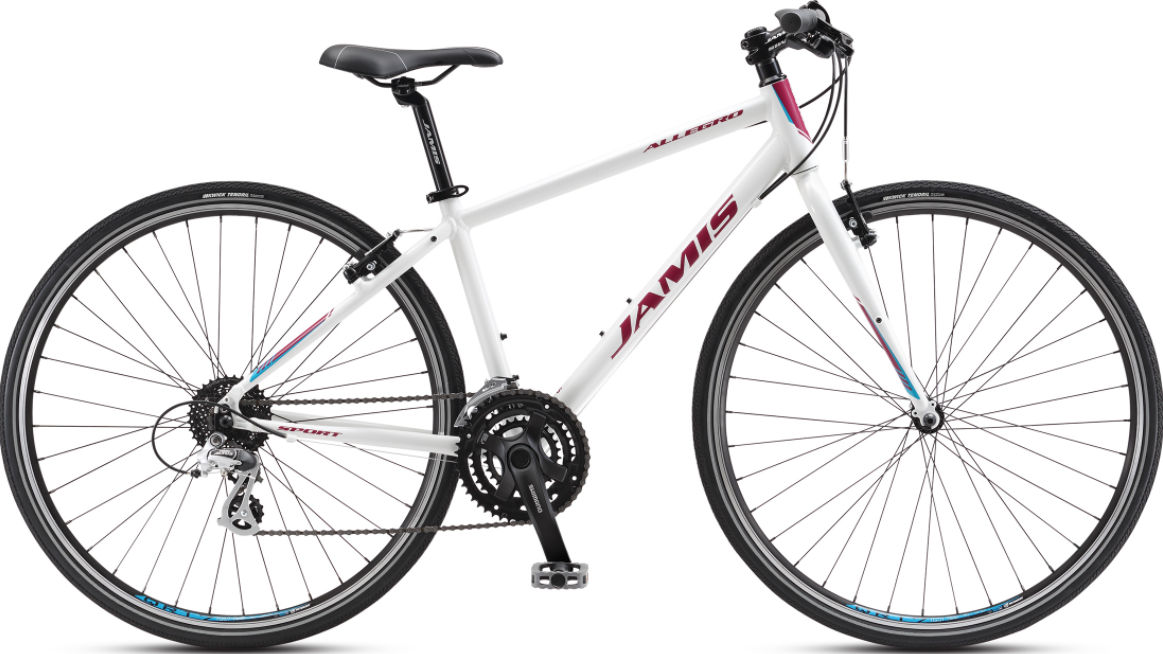

2017 Jamis Allegro Sport Femme geometry
Full frame geometry for the 2017 Jamis Allegro Sport Femme, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 533 | 370 | 74.5 | 70.5 | 125 | 520 | 721 | 55 | 435 | 1024 | 50 |
| 16 | 545 | 372 | 74 | 71 | 135 | 530 | 733 | 55 | 435 | 1025 | 50 |
| 18 | 559 | 378 | 74 | 71 | 150 | 540 | 760 | 55 | 435 | 1036 | 50 |
All measurements in millimetres unless marked (°) for angles.
