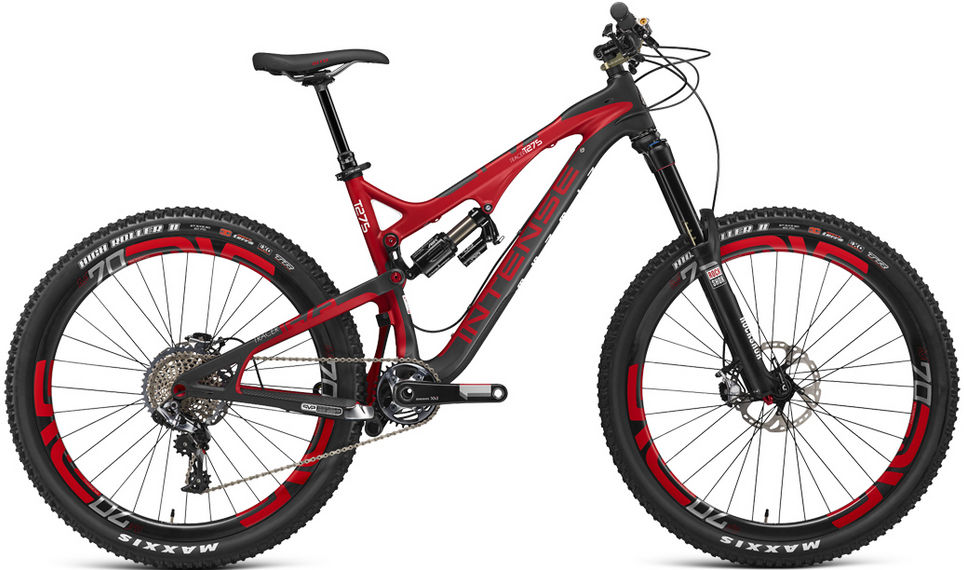

2015 Intense Tracer T275C geometry
Full frame geometry for the 2015 Intense Tracer T275C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 594 | 395 | 74.5 | 66.5 | 100 | 560 | 395 | 792 | 1 | 432 | 1124 |
| M | 609 | 416 | 74.5 | 66.5 | 114 | 585 | 445 | 798 | 1 | 432 | 1149 |
| L | 618 | 445 | 74.5 | 66.5 | 125 | 616 | 485 | 802 | 1 | 432 | 1175 |
| XL | 618 | 470 | 74.5 | 66.5 | 125 | 641 | 540 | 803 | 1 | 432 | 1200 |
All measurements in millimetres unless marked (°) for angles.
