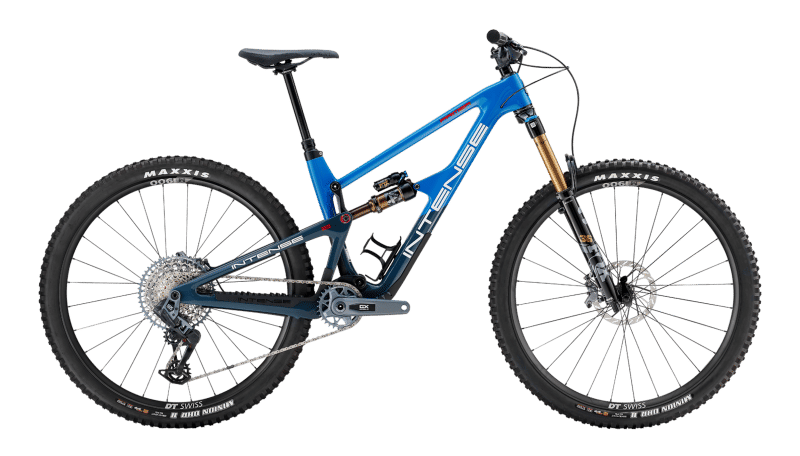

2026 Intense Primer geometry
Full frame geometry for the 2026 Intense Primer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 568 | 427 | 77 | 65.6 | 90 | 618 | 405 | 31 | 749 | 440 | 1188 | 44 |
| M | 597 | 456 | 77 | 65.6 | 90 | 618 | 420 | 31 | 778 | 440 | 1217 | 44 |
| L | 626 | 483 | 77 | 65.6 | 100 | 627 | 440 | 31 | 808 | 440 | 1247 | 44 |
| XL | 656 | 507 | 77 | 65.6 | 120 | 645 | 465 | 31 | 840 | 440 | 1279 | 44 |
All measurements in millimetres unless marked (°) for angles.
