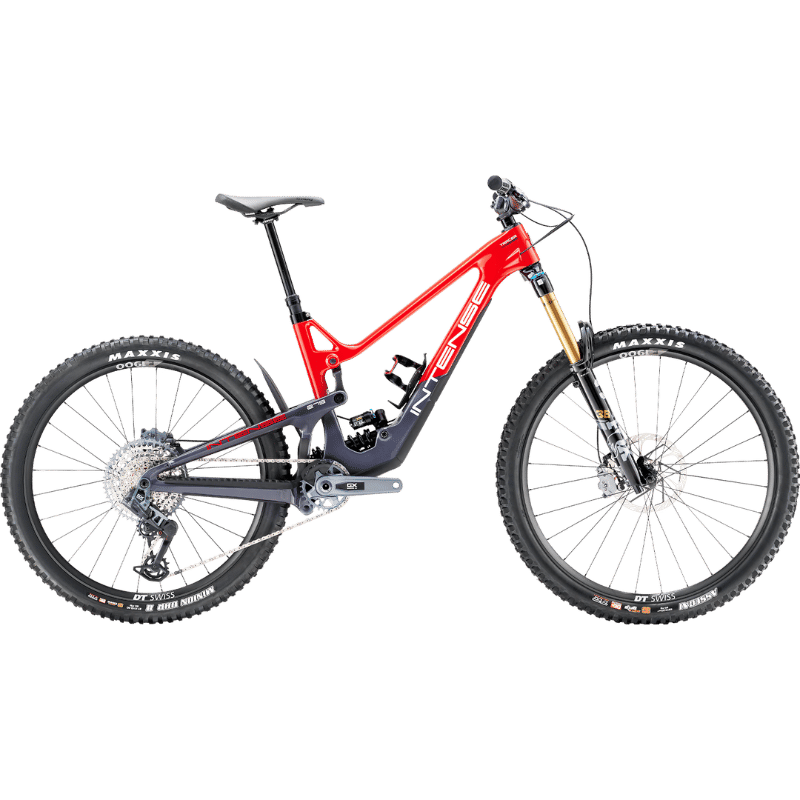

2026 Intense Tracer 279 geometry
Full frame geometry for the 2026 Intense Tracer 279, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 622 | 420 | 77.4 | 64 | 90 | 559 | 385 | 32 | 757 | 439 | 1195 | 44 |
| M | 631 | 450 | 77.4 | 64 | 100 | 591 | 418 | 32 | 791 | 439 | 1229 | 44 |
| L | 640 | 475 | 77.4 | 64 | 110 | 619 | 440 | 32 | 820 | 439 | 1258 | 44 |
| XL | 649 | 500 | 77.4 | 64 | 120 | 646 | 465 | 32 | 849 | 439 | 1287 | 44 |
All measurements in millimetres unless marked (°) for angles.
