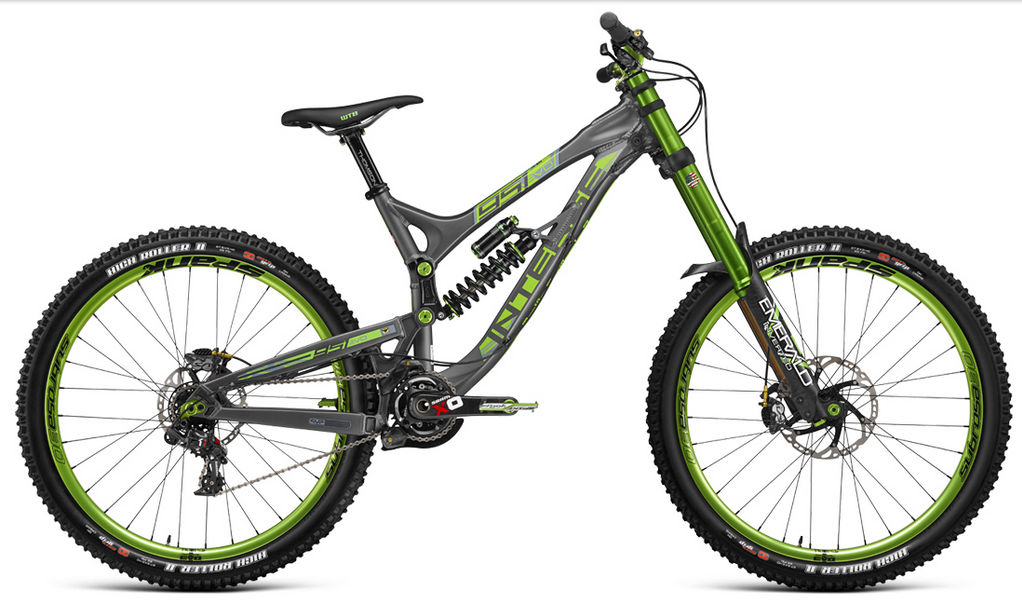

2015 Intense 951 Evo geometry
Full frame geometry for the 2015 Intense 951 Evo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 584 | 434 | 74 | 62.5 | 127 | 622 | 451 | 813 | 7 | 445 | 1245 |
| M | 584 | 432 | 74 | 62.5 | 114 | 597 | 432 | 787 | 7 | 445 | 1219 |
| S | 584 | 406 | 74 | 62.5 | 114 | 572 | 384 | 762 | 7 | 445 | 1194 |
All measurements in millimetres unless marked (°) for angles.
