2025 Intense · DH

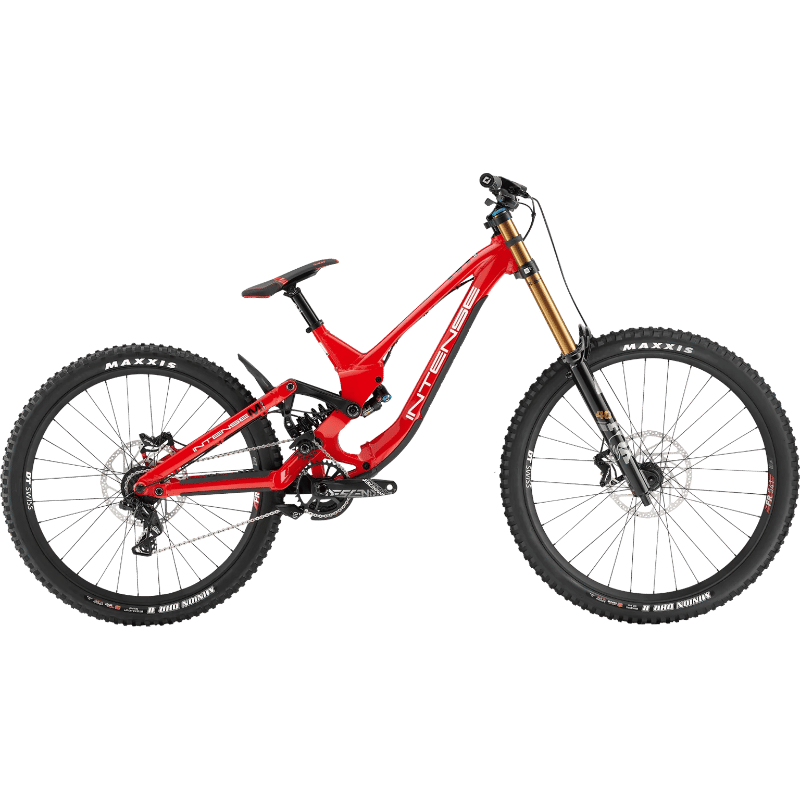

2025 Intense M1 geometry
Full frame geometry for the 2025 Intense M1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 628 | 450 | 75 | 63 | 100 | 613 | 405 | 19 | 818 | 445 | 1263 | 52 |
| S | 628 | 430 | 75 | 63 | 100 | 593 | 405 | 19 | 798 | 445 | 1243 | 52 |
| L | 641 | 470 | 75 | 63 | 115 | 637 | 440 | 19 | 845 | 445 | 1290 | 52 |
| XL | 641 | 490 | 75 | 63 | 115 | 662 | 440 | 19 | 865 | 445 | 1310 | 52 |
All measurements in millimetres unless marked (°) for angles.
