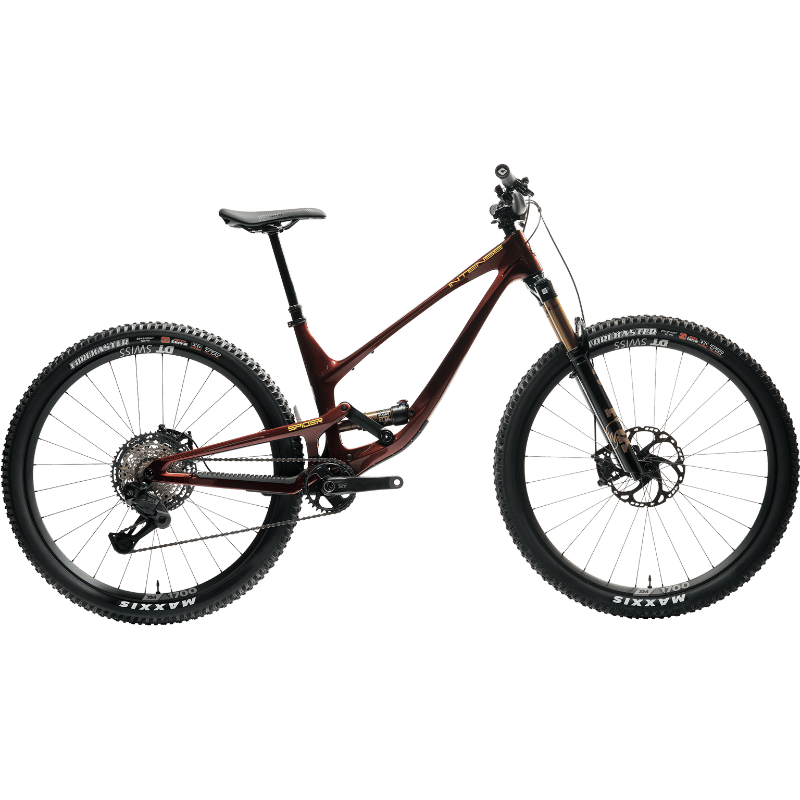

2026 Intense Spider geometry
Full frame geometry for the 2026 Intense Spider, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 430 | 74 | 65 | 100 | 557 | 390 | 38.5 | 742 | 435 | 1177 | 44 |
| M | 612 | 455 | 74 | 65 | 110 | 585 | 415 | 38.5 | 771 | 435 | 1206 | 44 |
| L | 620 | 475 | 74 | 65 | 120 | 607 | 440 | 38.5 | 800 | 435 | 1230 | 44 |
| XL | 630 | 505 | 74 | 65 | 130 | 639 | 465 | 38.5 | 829 | 435 | 1264 | 44 |
All measurements in millimetres unless marked (°) for angles.
