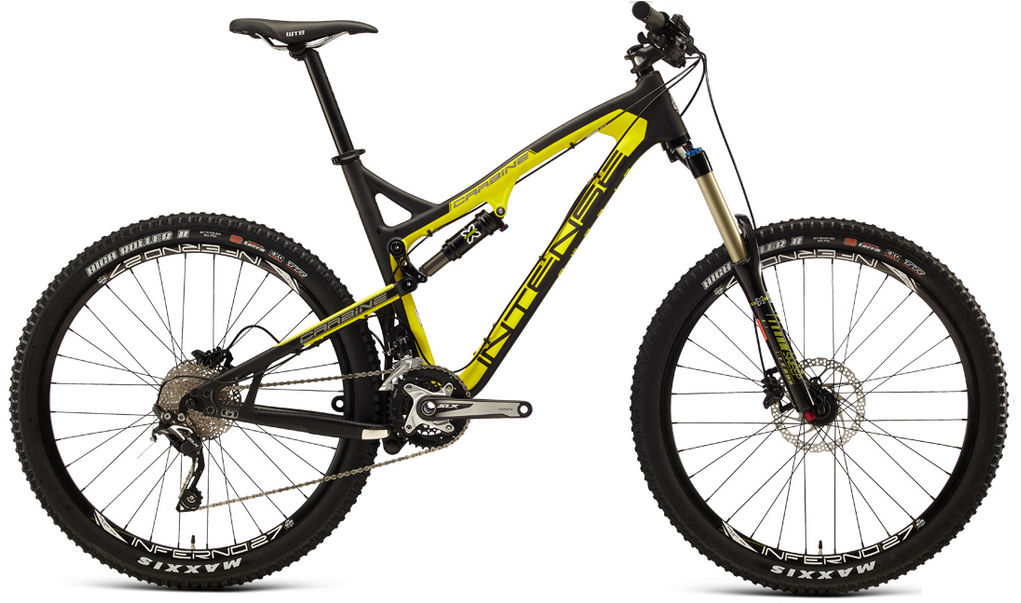

2015 Intense Carbine 275 geometry
Full frame geometry for the 2015 Intense Carbine 275, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 572 | 387 | 72.5 | 67 | 107 | 559 | 394 | 783 | 6 | 432 | 1097 |
| M | 584 | 413 | 72.5 | 67 | 114 | 584 | 445 | 799 | 6 | 432 | 1123 |
| L | 597 | 438 | 72.5 | 67 | 122 | 610 | 495 | 808 | 6 | 432 | 1148 |
All measurements in millimetres unless marked (°) for angles.
