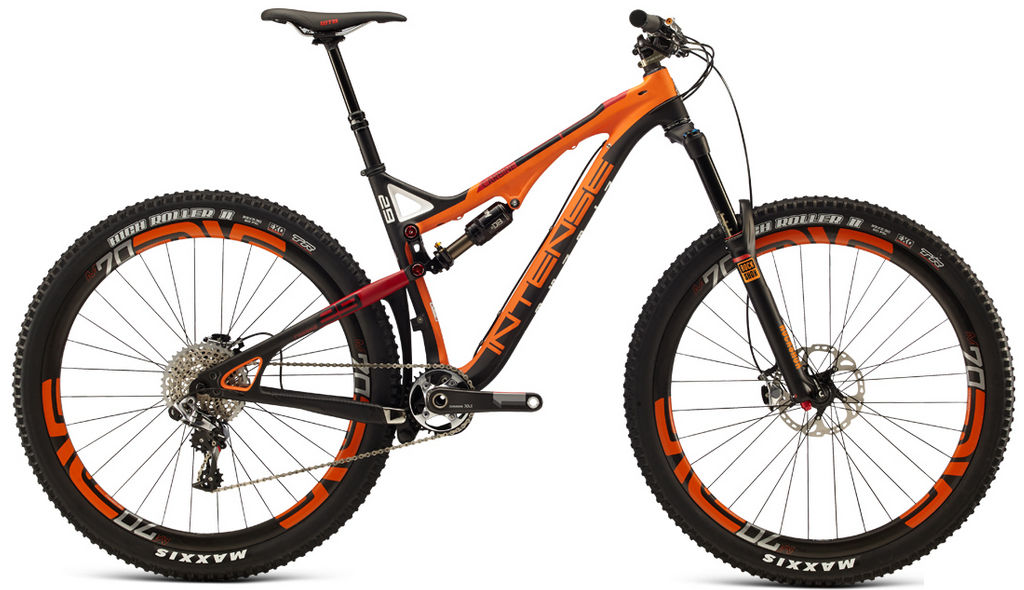

2015 Intense Carbine 29 geometry
Full frame geometry for the 2015 Intense Carbine 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 394 | 72 | 67 | 94 | 572 | 406 | 819 | 9 | 451 | 1143 |
| M | 632 | 416 | 72 | 67 | 102 | 597 | 457 | 827 | 9 | 451 | 1168 |
| L | 645 | 437 | 72 | 67 | 114 | 622 | 495 | 839 | 9 | 451 | 1194 |
| XL | 658 | 474 | 72 | 67 | 120 | 648 | 540 | 852 | 9 | 451 | 1219 |
All measurements in millimetres unless marked (°) for angles.
