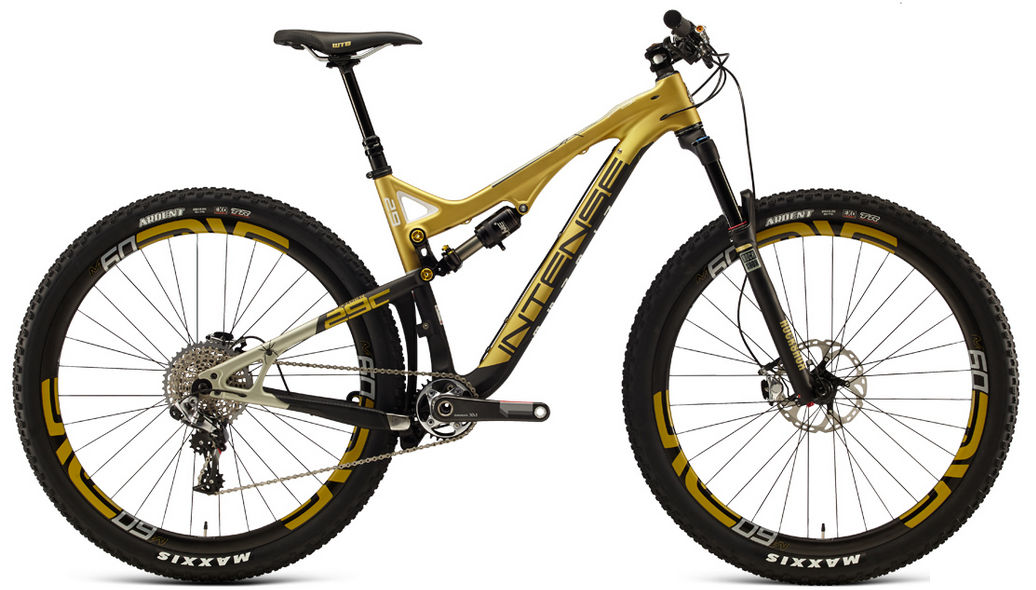

2015 Intense Spider 29C geometry
Full frame geometry for the 2015 Intense Spider 29C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 561 | 404 | 73.5 | 68.5 | — | 572 | 406 | 761 | 23 | 445 | 1118 |
| M | 574 | 424 | 74.5 | 68.5 | 102 | 597 | 457 | 774 | 23 | 445 | 1143 |
| L | 587 | 434 | 74.5 | 68.5 | 114 | 622 | 495 | 819 | 23 | 445 | 1168 |
| XL | 599 | 470 | 74.5 | 68.5 | 120 | 648 | 540 | 831 | 23 | 445 | 1194 |
All measurements in millimetres unless marked (°) for angles.
