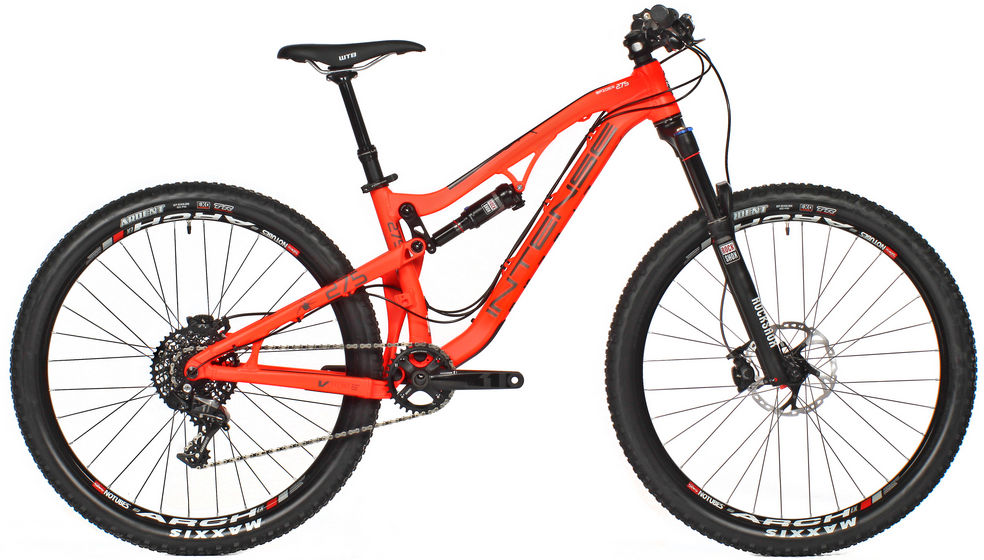

2015 Intense Spider 275 geometry
Full frame geometry for the 2015 Intense Spider 275, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 579 | 422 | 72.5 | 67 | 102 | 572 | 375 | 776 | 5 | 419 | 1125 |
| M | 591 | 445 | 72.5 | 67 | 115 | 597 | 445 | 783 | 5 | 419 | 1152 |
| L | 602 | 467 | 72.5 | 67 | 127 | 622 | 483 | 790 | 5 | 419 | 1178 |
| XL | 602 | 492 | 72.5 | 67 | 127 | 648 | 514 | 795 | 5 | 419 | 1203 |
All measurements in millimetres unless marked (°) for angles.
