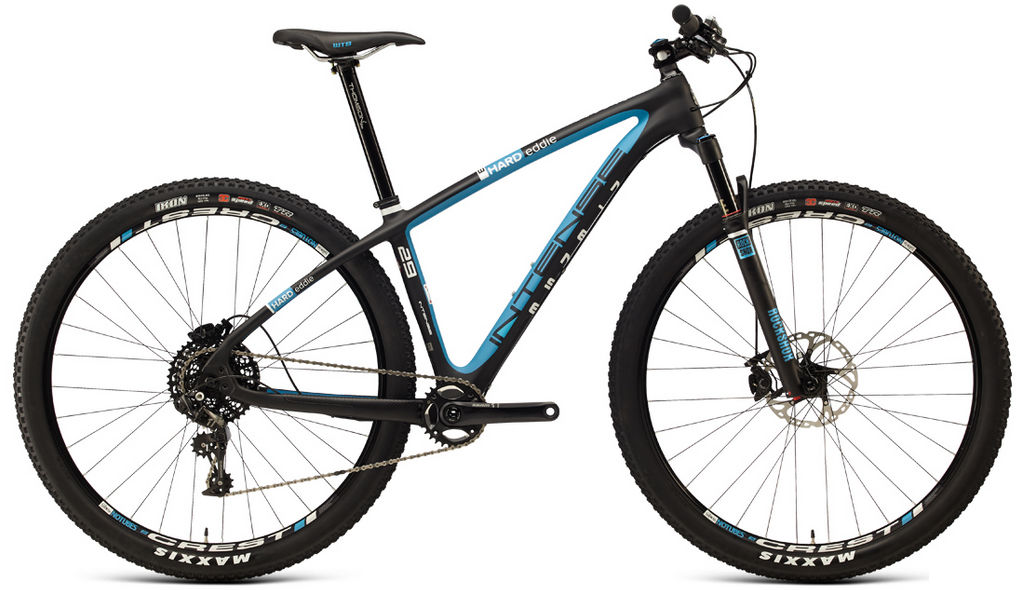

2015 Intense Hard Eddie geometry
Full frame geometry for the 2015 Intense Hard Eddie, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 398 | 72.4 | 70.5 | 94 | 589 | 406 | 815 | 48 | 436 | 1092 |
| M | 617 | 415 | 72.4 | 70.5 | 107 | 610 | 457 | 827 | 48 | 436 | 1118 |
| L | 627 | 431 | 72.4 | 70.5 | 117 | 630 | 508 | 837 | 48 | 436 | 1143 |
All measurements in millimetres unless marked (°) for angles.
