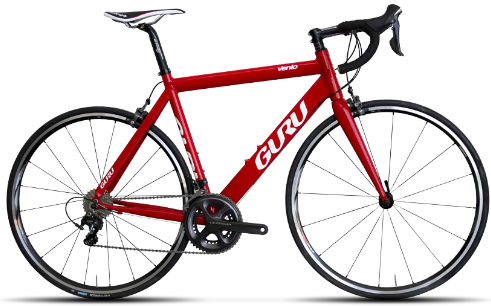

2015 Guru Venio geometry
Full frame geometry for the 2015 Guru Venio, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 538 | 365 | 74 | 72 | 130 | 520 | 746 | 70 | 567 | 410 | 967 | 44 | 64 |
| S | 557 | 369 | 73.5 | 72 | 150 | 535 | 766 | 70 | 577 | 410 | 977 | 44 | 64 |
| ML | 580 | 378 | 73.5 | 73 | 170 | 550 | 790 | 70 | 584 | 410 | 984 | 44 | 58 |
| L | 609 | 389 | 73.5 | 73 | 200 | 570 | 817 | 70 | 604 | 410 | 1004 | 44 | 58 |
| XL | 628 | 384 | 73.5 | 73 | 220 | 585 | 836 | 70 | 605 | 410 | 1005 | 44 | 58 |
All measurements in millimetres unless marked (°) for angles.
