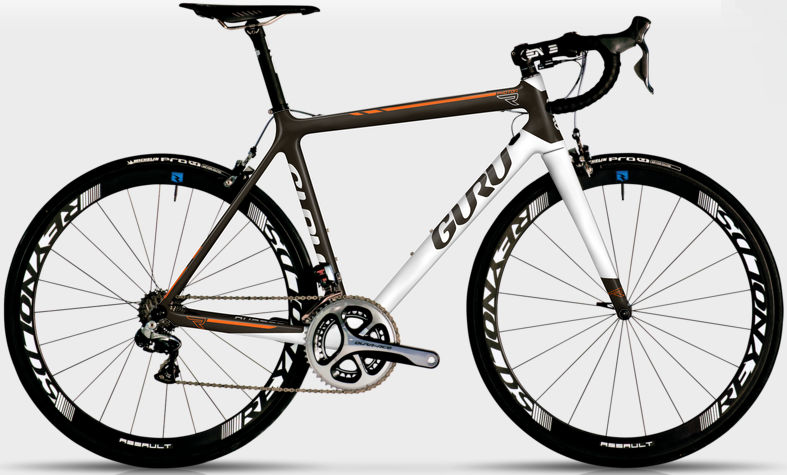

2015 Guru Photon R geometry
Full frame geometry for the 2015 Guru Photon R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 503 | 359 | 74 | 71 | 110 | 505 | 714 | 70 | 565 | 410 | 965 | 50 | 62 |
| XS | 504 | 367 | 73.5 | 71.5 | 110 | 520 | 719 | 70 | 571 | 410 | 976 | 50 | 59 |
| S | 524 | 381 | 73.5 | 71.7 | 130 | 540 | 739 | 70 | 591 | 410 | 990 | 50 | 58 |
| M | 560 | 391 | 73.5 | 72.9 | 160 | 560 | 771 | 70 | 594 | 410 | 994 | 43 | 58 |
| L | 588 | 403 | 73.5 | 72.9 | 190 | 580 | 800 | 70 | 614 | 410 | 1014 | 43 | 58 |
| XL | 608 | 412 | 73.5 | 72.9 | 210 | 595 | 819 | 70 | 629 | 410 | 1029 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
