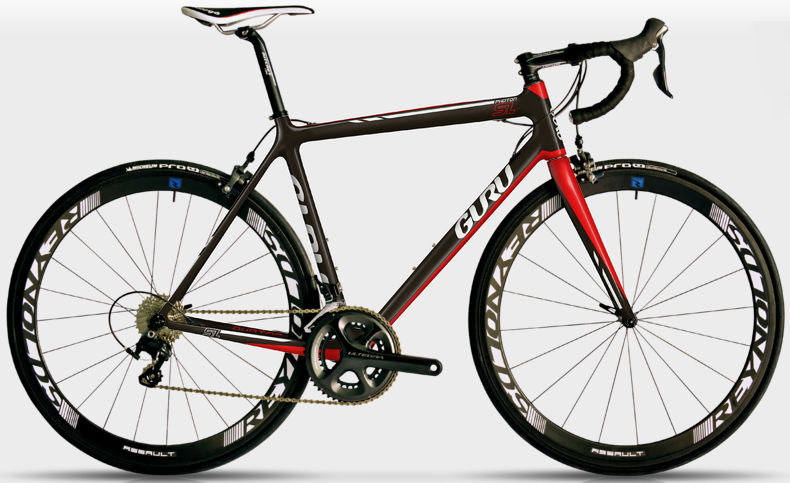

2015 Guru Photon SL geometry
Full frame geometry for the 2015 Guru Photon SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 506 | 358 | 74 | 71 | 110 | 505 | 715 | 73 | 565 | 410 | 964 | 50 | 62 |
| XS | 508 | 368 | 73.5 | 71.7 | 110 | 520 | 721 | 73 | 570 | 410 | 969 | 50 | 58 |
| S | 537 | 375 | 73.5 | 71.7 | 140 | 535 | 745 | 73 | 586 | 410 | 984 | 50 | 58 |
| M | 563 | 383 | 73.5 | 72.9 | 160 | 550 | 773 | 73 | 583 | 410 | 982 | 43 | 58 |
| L | 587 | 396 | 73.5 | 72.9 | 185 | 570 | 799 | 73 | 603 | 410 | 1002 | 43 | 58 |
| XL | 601 | 407 | 73.5 | 72.9 | 200 | 585 | 814 | 73 | 618 | 412 | 1020 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
