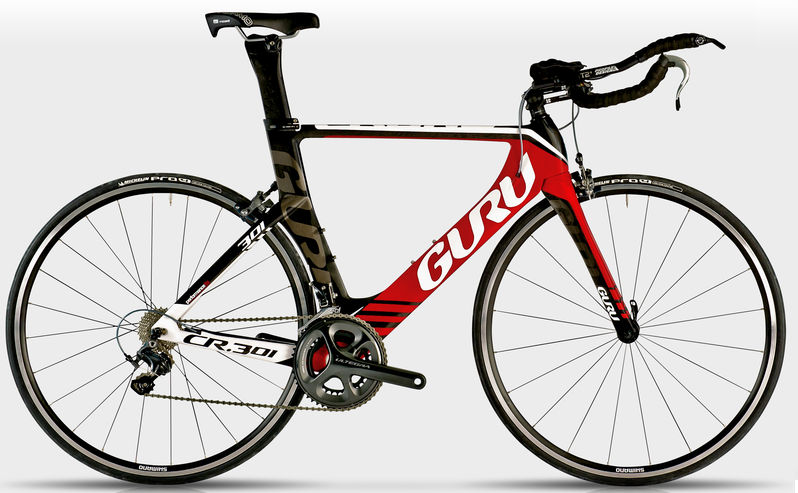

2015 Guru CR.301 geometry
Full frame geometry for the 2015 Guru CR.301, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 482 | 398 | 78 | 71.6 | 84 | 497 | 730 | 68 | 581 | 385 | 960 | 45 | 69 |
| S | 502 | 413 | 78 | 71.8 | 104 | 516 | 749 | 68 | 601 | 385 | 980 | 45 | 65 |
| M | 522 | 428 | 78 | 72 | 124 | 536 | 770 | 68 | 621 | 385 | 1000 | 45 | 63 |
| L | 541 | 444 | 78 | 72.2 | 144 | 555 | 790 | 68 | 639 | 385 | 1020 | 45 | 62 |
| XL | 562 | 458 | 78 | 72.4 | 165 | 574 | 810 | 68 | 660 | 385 | 1039 | 45 | 61 |
All measurements in millimetres unless marked (°) for angles.
