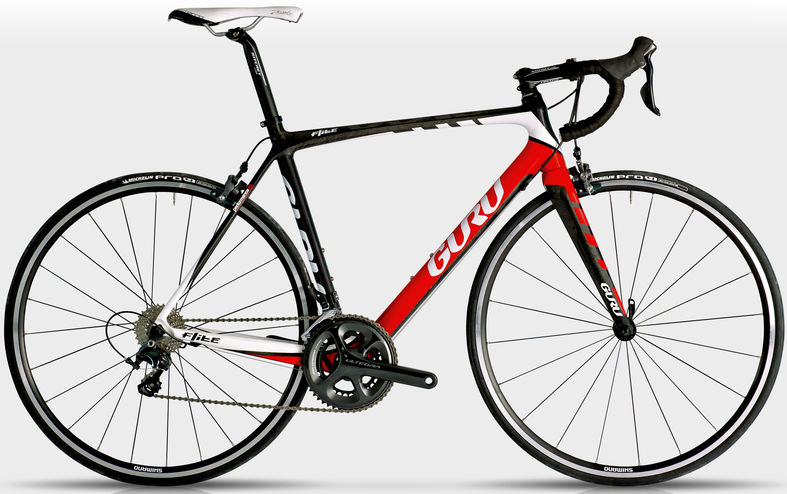

2015 Guru Flite geometry
Full frame geometry for the 2015 Guru Flite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 513 | 381 | 74 | 71.5 | 120 | 530 | 742 | 68 | 582 | 406 | 978 | 45 | 65 |
| S | 535 | 386 | 73.5 | 72 | 140 | 545 | 766 | 68 | 588 | 406 | 985 | 45 | 62 |
| M | 553 | 391 | 73 | 73 | 155 | 560 | 784 | 68 | 588 | 406 | 985 | 45 | 56 |
| L | 572 | 395 | 73 | 73 | 175 | 570 | 804 | 68 | 598 | 406 | 998 | 45 | 56 |
| XL | 588 | 400 | 72.5 | 73 | 195 | 585 | 813 | 65 | 608 | 410 | 1009 | 45 | 53 |
All measurements in millimetres unless marked (°) for angles.
