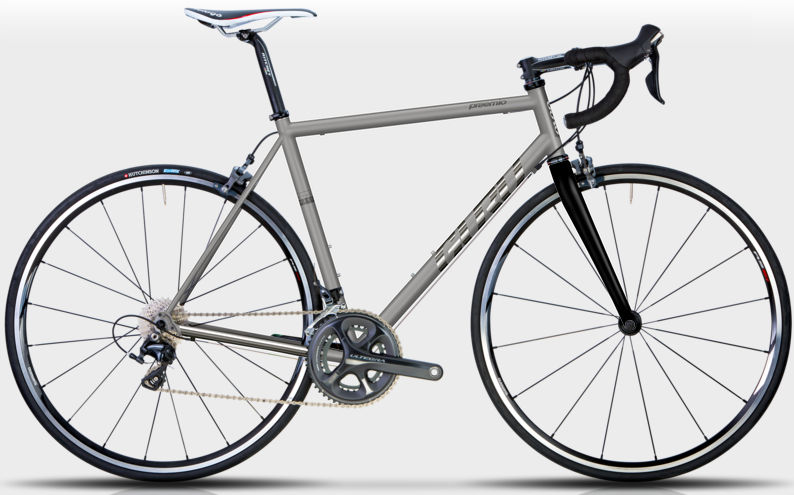

2015 Guru Praemio geometry
Full frame geometry for the 2015 Guru Praemio, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 521 | 364 | 73.5 | 71.5 | 110 | 520 | 728 | 75 | 572 | 410 | 970 | 50 | 59 |
| S | 541 | 374 | 73.5 | 71.7 | 130 | 535 | 750 | 75 | 585 | 410 | 984 | 50 | 58 |
| M | 567 | 387 | 73.5 | 72.8 | 150 | 555 | 771 | 75 | 589 | 410 | 987 | 43 | 58 |
| L | 586 | 396 | 73.5 | 72.8 | 170 | 570 | 795 | 75 | 604 | 410 | 1002 | 43 | 58 |
| XL | 605 | 405 | 73.5 | 72.8 | 190 | 585 | 819 | 75 | 619 | 410 | 1018 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
