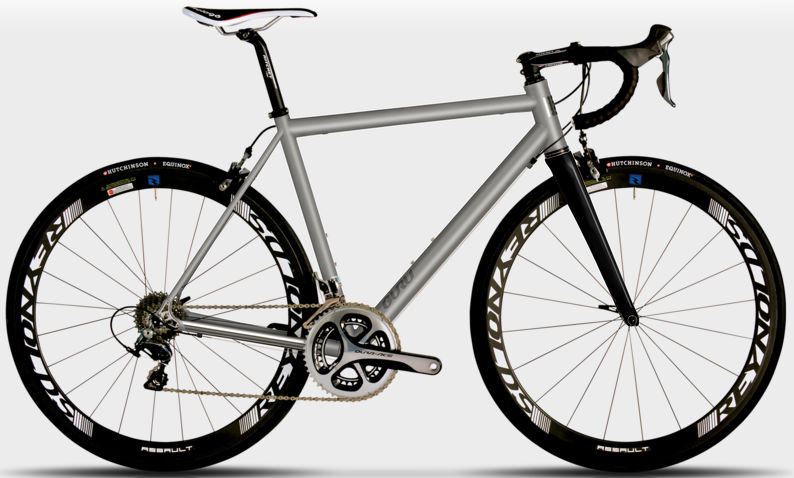

2015 Guru Praemio R geometry
Full frame geometry for the 2015 Guru Praemio R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 511 | 368 | 73.5 | 71.5 | 104 | 520 | 728 | 70 | 572 | 410 | 972 | 50 | 59 |
| S | 531 | 377 | 73.5 | 71.7 | 124 | 535 | 747 | 70 | 586 | 410 | 986 | 50 | 58 |
| M | 557 | 385 | 73.5 | 72.8 | 144 | 550 | 771 | 70 | 585 | 410 | 984 | 43 | 58 |
| L | 576 | 399 | 73.5 | 72.8 | 164 | 570 | 795 | 70 | 605 | 410 | 1005 | 43 | 58 |
| XL | 595 | 408 | 73.5 | 72.8 | 184 | 585 | 810 | 70 | 620 | 410 | 1020 | 43 | 58 |
All measurements in millimetres unless marked (°) for angles.
