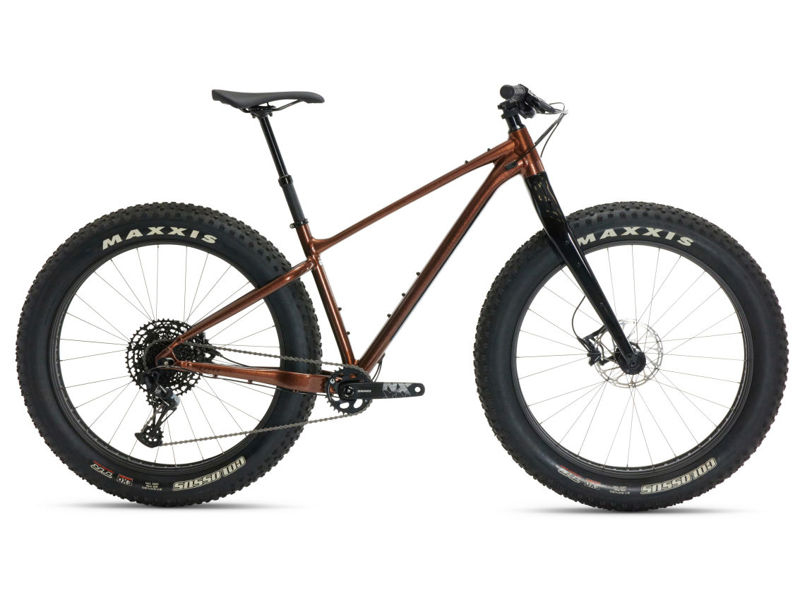

2022 Giant YUKON geometry
Full frame geometry for the 2022 Giant YUKON, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621.5 | 395 | 73 | 68.5 | 100 | 585 | 381 | 719 | 75 | 445 | 1128.6 | 60 | 90.1 |
| m | 635.5 | 410.7 | 73 | 68.5 | 115 | 605 | 432 | 735 | 75 | 445 | 1149.8 | 60 | 90.1 |
| I | 649.4 | 426.5 | 73 | 68.5 | 130 | 625 | 483 | 772 | 75 | 445 | 1171.1 | 60 | 90.1 |
| XI | 668 | 440.8 | 73 | 68.5 | 150 | 645 | 533 | 811 | 75 | 445 | 1192.7 | 60 | 90.1 |
All measurements in millimetres unless marked (°) for angles.
