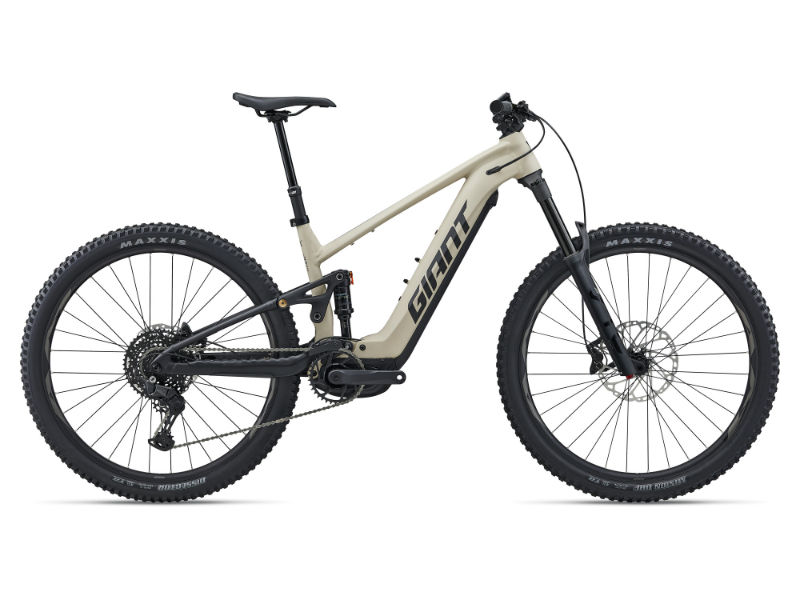

2027 Giant Stance E+ geometry
Full frame geometry for the 2027 Giant Stance E+, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 614 | 431 | 76.5 | 64.5 | 100 | 579 | 400 | 746 | 26 | 468 | 1229 | 44 | 132 |
| M | 628 | 455 | 76.5 | 64.5 | 115 | 606 | 425 | 744 | 26 | 468 | 1259 | 44 | 132 |
| L | 641 | 480 | 76.5 | 64.5 | 130 | 635 | 450 | 756 | 26 | 468 | 1291 | 44 | 132 |
| XL | 655 | 505 | 76.5 | 64.5 | 145 | 663 | 475 | 762 | 26 | 468 | 1322 | 44 | 132 |
All measurements in millimetres unless marked (°) for angles.
