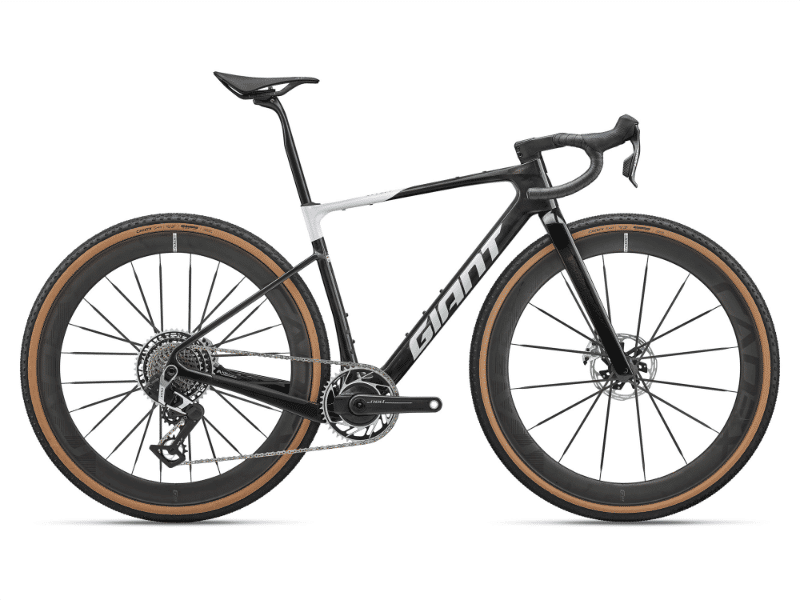

2027 Giant Revolt Advanced SL geometry
Full frame geometry for the 2027 Giant Revolt Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 389 | 75 | 70.5 | 90 | 530 | 430 | 726 | 80 | 433 | 1026 | 50 | 78 |
| S | 536 | 391 | 74.5 | 71 | 100 | 540 | 450 | 743 | 80 | 433 | 1027 | 50 | 74 |
| M | 557 | 395 | 74.5 | 71.5 | 120 | 550 | 470 | 762 | 80 | 433 | 1033 | 50 | 71 |
| M/L | 573 | 401 | 74 | 72 | 135 | 565 | 490 | 779 | 80 | 433 | 1039 | 50 | 67 |
| L | 592 | 410 | 74 | 72 | 155 | 580 | 510 | 798 | 80 | 433 | 1055 | 50 | 67 |
| XL | 616 | 413 | 74 | 72 | 180 | 590 | 530 | 818 | 80 | 433 | 1066 | 50 | 67 |
All measurements in millimetres unless marked (°) for angles.
