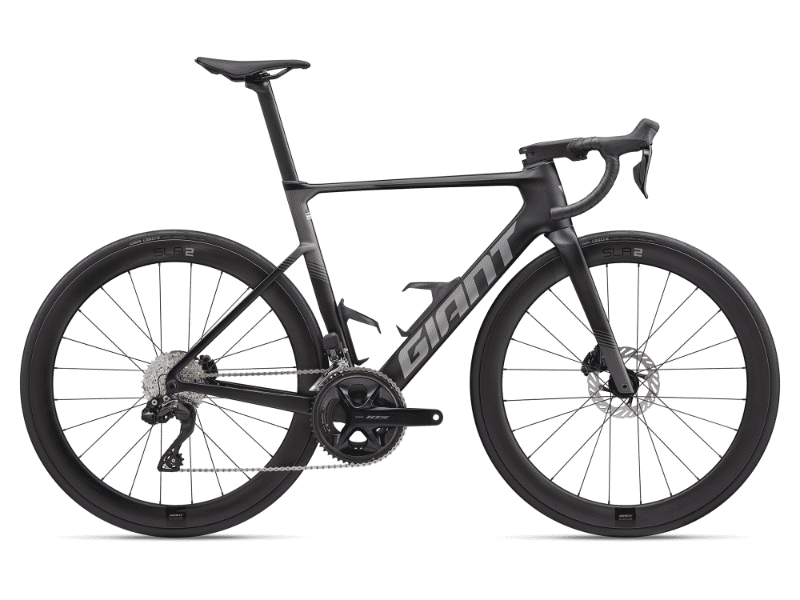

2027 Giant Propel Advanced geometry
Full frame geometry for the 2027 Giant Propel Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 377 | 74.5 | 71.5 | 115 | 520 | 484 | 746 | 72 | 405 | 971 | 45 | 67.8 |
| S | 530 | 383 | 74 | 72.5 | 127 | 535 | 505 | 764 | 72 | 405 | 973 | 45 | 61.4 |
| M | 546 | 388 | 73.5 | 73 | 145 | 550 | 528.5 | 787 | 69.5 | 405 | 980 | 45 | 58.3 |
| M/L | 565 | 392 | 73 | 73 | 165 | 565 | 554 | 808 | 69.5 | 405 | 990 | 45 | 58.3 |
| L | 582 | 402 | 73 | 73 | 185 | 580 | 576 | 832 | 67 | 405 | 1006 | 45 | 58.3 |
| XL | 596 | 412 | 72.5 | 73 | 200 | 600 | 595 | 847 | 67 | 405 | 1020 | 45 | 58.3 |
All measurements in millimetres unless marked (°) for angles.
