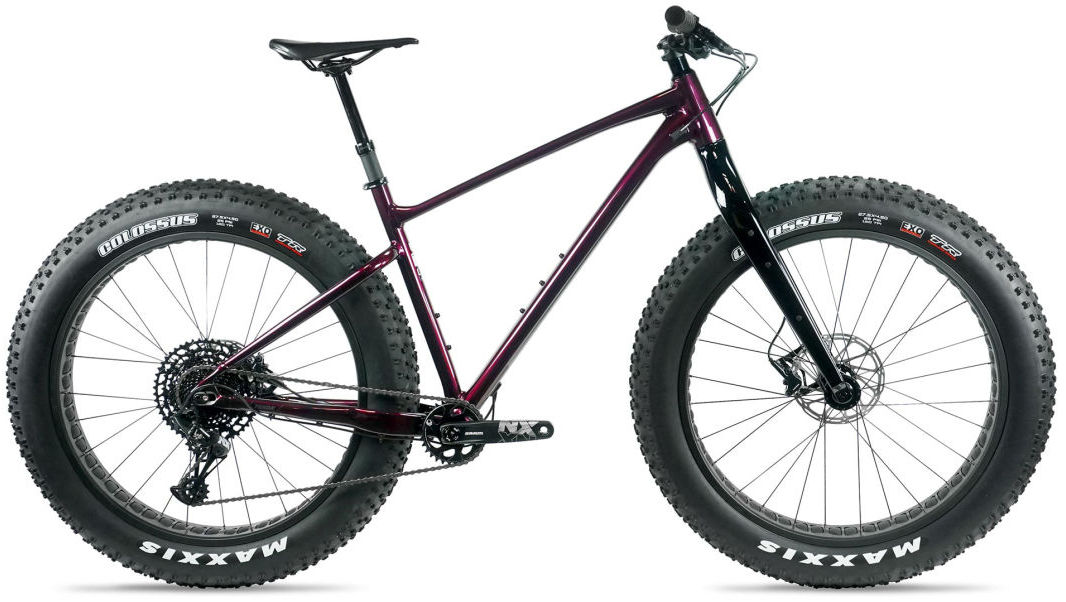

2020 Giant Yukon geometry
Full frame geometry for the 2020 Giant Yukon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 622 | 395 | 73 | 68.5 | 100 | 585 | 381 | 719 | 75 | 679 | 460 | 1129 | 60 | 90 |
| M | 636 | 411 | 73 | 68.5 | 115 | 605 | 432 | 735 | 75 | 700 | 460 | 1150 | 60 | 90 |
| L | 649 | 426 | 73 | 68.5 | 130 | 625 | 483 | 772 | 75 | 721 | 460 | 1171 | 60 | 90 |
| XL | 668 | 441 | 73 | 68.5 | 150 | 645 | 533 | 811 | 75 | 743 | 460 | 1193 | 60 | 90 |
All measurements in millimetres unless marked (°) for angles.
