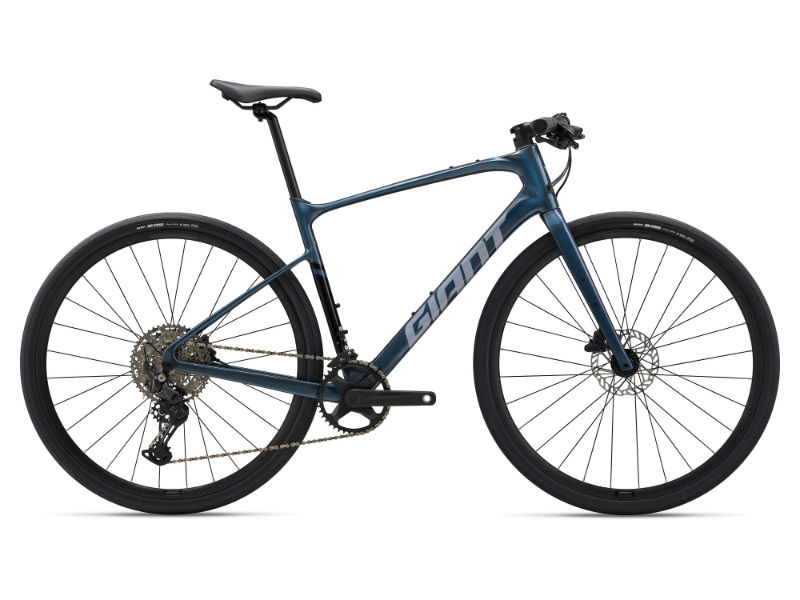

2027 Giant FastRoad AR Advanced geometry
Full frame geometry for the 2027 Giant FastRoad AR Advanced, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 552 | 396 | 73.5 | 70.5 | 130 | 560 | 455 | 736 | 75 | 435 | 1047 | 50 | 73.7 |
| M | 578 | 404 | 73.5 | 71 | 155 | 575 | 475 | 756 | 75 | 435 | 1058 | 50 | 70.4 |
| ML | 597 | 407 | 73 | 71 | 175 | 590 | 495 | 773 | 75 | 435 | 1069 | 50 | 70.4 |
| L | 623 | 419 | 73 | 71.5 | 200 | 610 | 525 | 800 | 75 | 435 | 1084 | 50 | 67.1 |
| XL | 646 | 432 | 73 | 71.5 | 225 | 630 | 555 | 826 | 75 | 435 | 1105 | 50 | 67.1 |
All measurements in millimetres unless marked (°) for angles.
