2027 Giant · RD

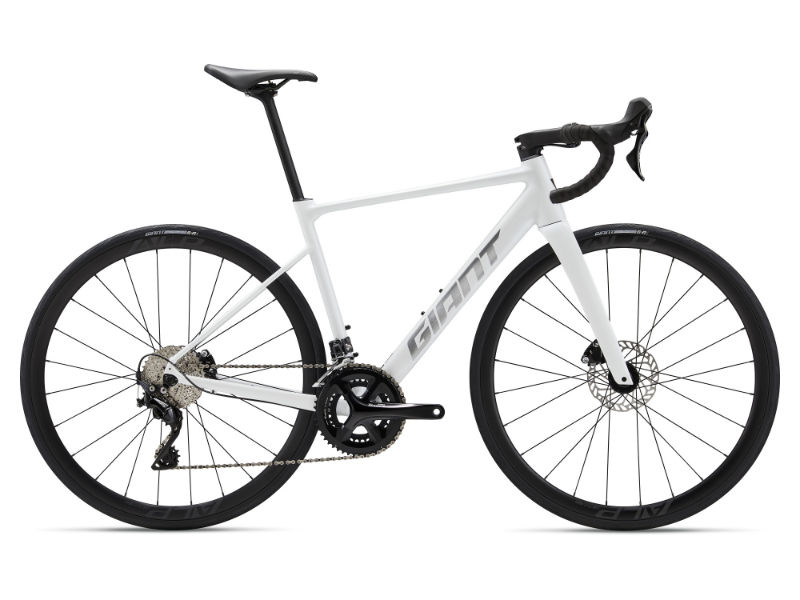

2027 Giant Contend SL geometry
Full frame geometry for the 2027 Giant Contend SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 527 | 369 | 74.5 | 70.5 | 125 | 515 | 410 | 693 | 75 | 420 | 995 | 50 | 69.3 |
| S | 541 | 375 | 74 | 71.8 | 135 | 530 | 445 | 720 | 75 | 420 | 994 | 50 | 61.3 |
| M | 558 | 380 | 73.5 | 72.5 | 150 | 545 | 480 | 748 | 75 | 420 | 998 | 50 | 56.5 |
| ML | 577 | 384 | 73 | 72.5 | 175 | 560 | 515 | 781 | 70 | 420 | 1010 | 50 | 56.5 |
| L | 596 | 393 | 73 | 72.5 | 195 | 575 | 535 | 800 | 70 | 420 | 1025 | 50 | 56.5 |
All measurements in millimetres unless marked (°) for angles.
