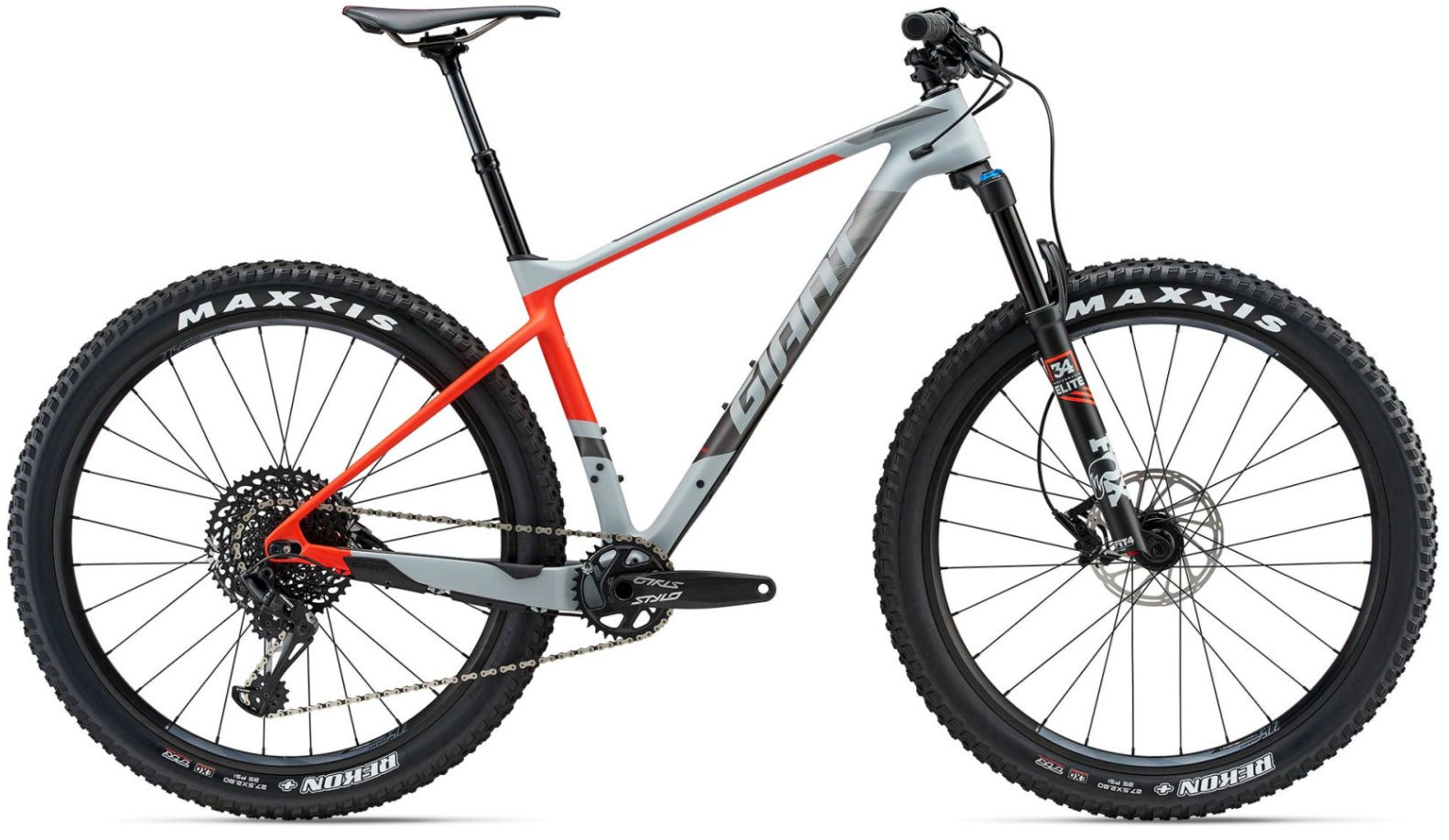

2018 Giant XTC Advanced + MKII geometry
Full frame geometry for the 2018 Giant XTC Advanced + MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 618 | 403 | 71.5 | 69 | 95 | 608 | 440 | 764 | 55 | 680 | 433 | 1107 | 51 | 88 |
| S | 618 | 388 | 72 | 69 | 95 | 588 | 390 | 740 | 55 | 666 | 433 | 1093 | 51 | 88 |
| L | 628 | 414 | 71 | 69 | 105 | 628 | 490 | 796 | 55 | 694 | 433 | 1121 | 51 | 88 |
| XL | 637 | 431 | 71 | 69 | 115 | 648 | 535 | 826 | 55 | 715 | 433 | 1142 | 51 | 88 |
All measurements in millimetres unless marked (°) for angles.
