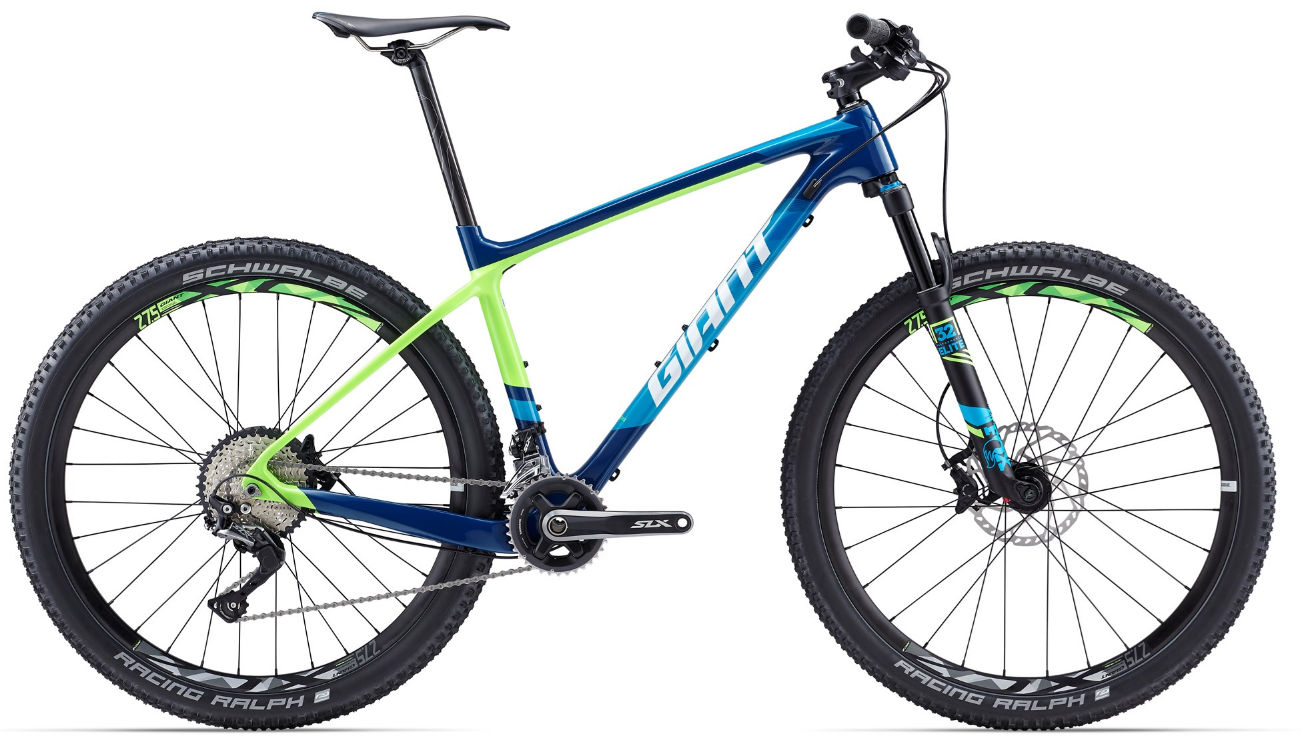

2017 Giant XTC Advanced MKII geometry
Full frame geometry for the 2017 Giant XTC Advanced MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 580 | 403 | 73.5 | 69.5 | 95 | 575 | 390 | 706 | 50 | 648 | 430 | 1073 | 42 | 88 |
| XS | 580 | 383 | 73.5 | 69.5 | 95 | 555 | 350 | 688 | 50 | 628 | 430 | 1053 | 42 | 88 |
| M | 585 | 416 | 73 | 69.5 | 100 | 595 | 440 | 739 | 50 | 663 | 430 | 1088 | 42 | 88 |
| L | 594 | 433 | 73 | 69.5 | 110 | 615 | 490 | 775 | 50 | 684 | 430 | 1109 | 42 | 88 |
| XL | 604 | 455 | 73 | 69.5 | 120 | 640 | 520 | 798 | 50 | 709 | 430 | 1134 | 42 | 88 |
All measurements in millimetres unless marked (°) for angles.
