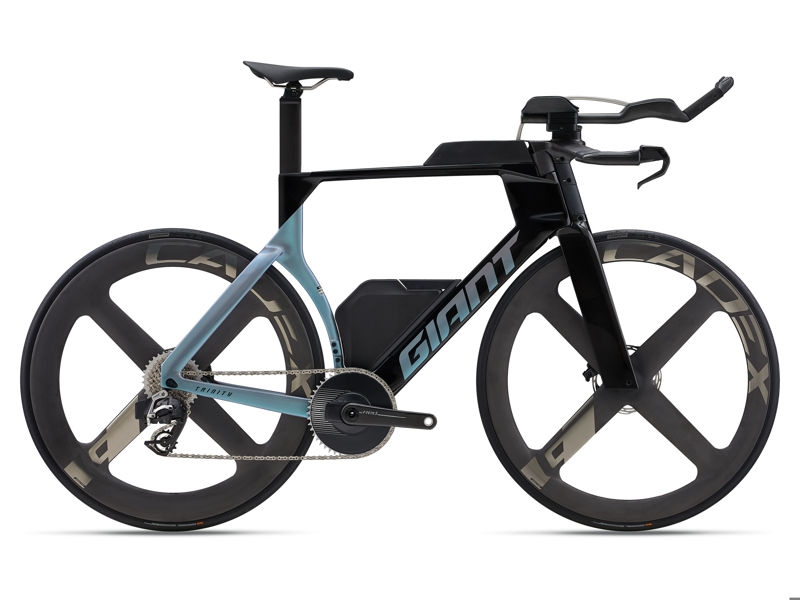

2025 Giant Trinity Advanced SL geometry
Full frame geometry for the 2025 Giant Trinity Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 490 | 397 | 77 | 72 | 85 | 510 | 465 | 758 | 70 | 405 | 974 | 63 |
| S | 513 | 412 | 77 | 73 | 105 | 530 | 495 | 786 | 70 | 405 | 988 | 63 |
| M | 532 | 432 | 77 | 73 | 125 | 554 | 525 | 814 | 70 | 405 | 1013 | 63 |
| L | 551 | 452 | 77 | 73 | 145 | 579 | 550 | 838 | 70 | 405 | 1039 | 63 |
All measurements in millimetres unless marked (°) for angles.
