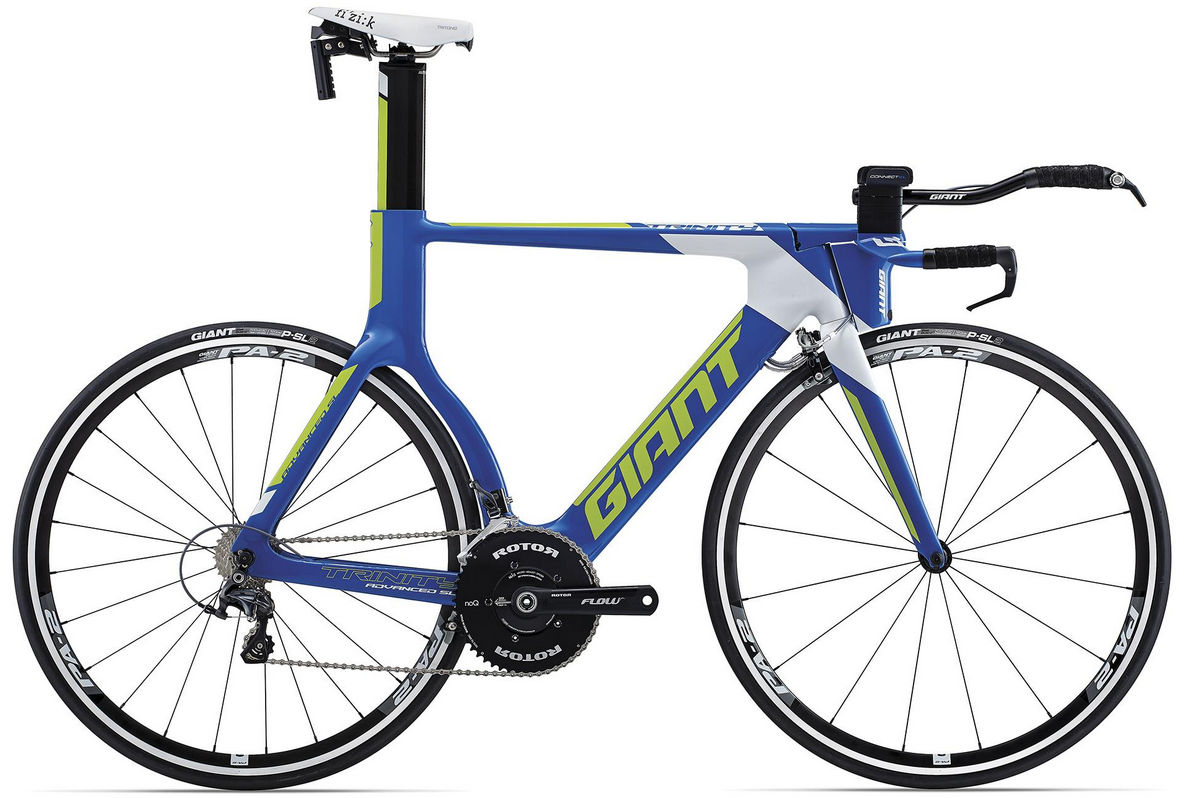

2013 Giant Trinity Advanced SL geometry
Full frame geometry for the 2013 Giant Trinity Advanced SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/46.5 | 486 | 397 | 78 | 73 | 80 | 500 | 787 | 68 | 571 | 405 | 967 | 43 | 59 |
| M/49.5 | 514 | 413 | 78 | 73 | 110 | 522 | 815 | 68 | 596 | 405 | 991 | 43 | 59 |
| L/52 | 543 | 418 | 78 | 73 | 140 | 533 | 843 | 68 | 610 | 405 | 1005 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
