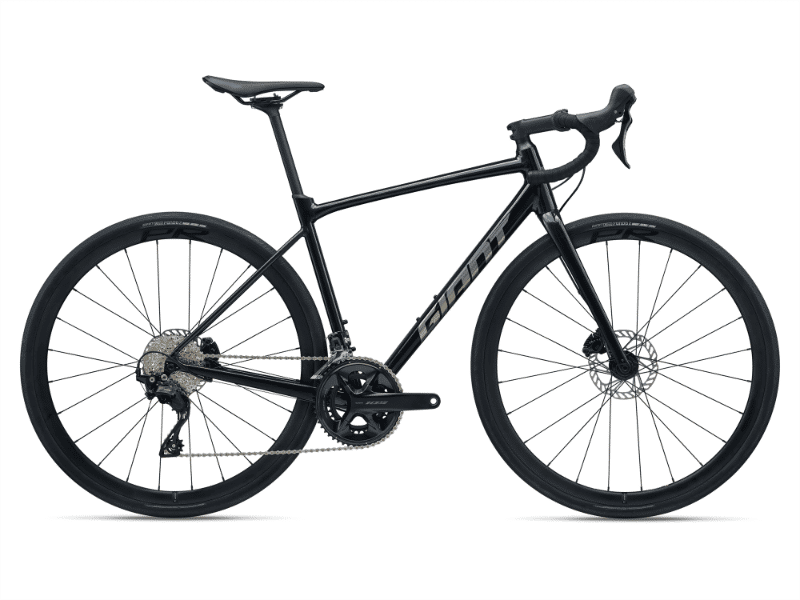

2026 Giant Contend AR geometry
Full frame geometry for the 2026 Giant Contend AR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 559 | 375 | 74 | 71.8 | 135 | 535 | 465 | 759 | 80 | 422 | 1003 | 53 | 61.3 |
| M | 574 | 380 | 73.5 | 72 | 150 | 550 | 500 | 783 | 80 | 422 | 1011 | 53 | 59.6 |
| M/L | 595 | 383 | 73 | 72.5 | 170 | 565 | 535 | 810 | 80 | 422 | 1015 | 53 | 56.4 |
| L | 614 | 392 | 73 | 72.5 | 190 | 580 | 555 | 829 | 80 | 422 | 1031 | 53 | 56.4 |
| XL | 638 | 400 | 73 | 72.5 | 215 | 595 | 585 | 856 | 80 | 422 | 1046 | 53 | 56.4 |
All measurements in millimetres unless marked (°) for angles.
