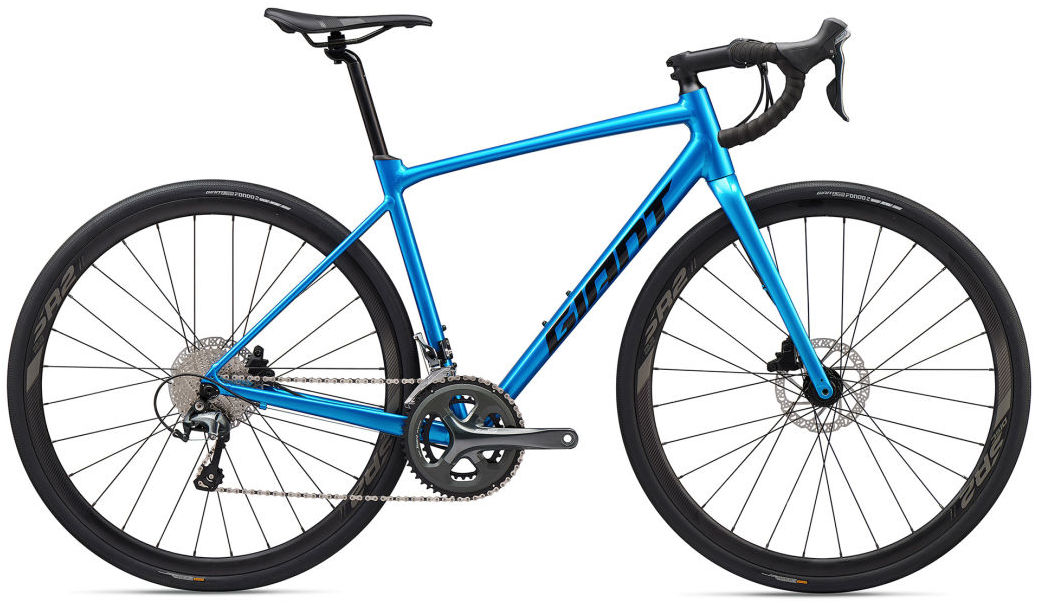

2020 Giant Contend AR geometry
Full frame geometry for the 2020 Giant Contend AR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 375 | 74 | 71.8 | 138 | 530 | 465 | 746 | 75 | 586 | 412 | 986 | 50 | 62 |
| M | 563 | 378 | 73.5 | 72.5 | 158 | 545 | 500 | 774 | 75 | 590 | 412 | 990 | 50 | 57 |
| ML | 577 | 384 | 73 | 72.5 | 178 | 560 | 535 | 803 | 70 | 600 | 412 | 1002 | 50 | 57 |
| L | 596 | 393 | 73 | 72.5 | 198 | 575 | 555 | 821 | 70 | 615 | 412 | 1017 | 50 | 57 |
| XL | 615 | 401 | 72.5 | 72.5 | 218 | 595 | 585 | 844 | 70 | 629 | 412 | 1031 | 50 | 57 |
All measurements in millimetres unless marked (°) for angles.
