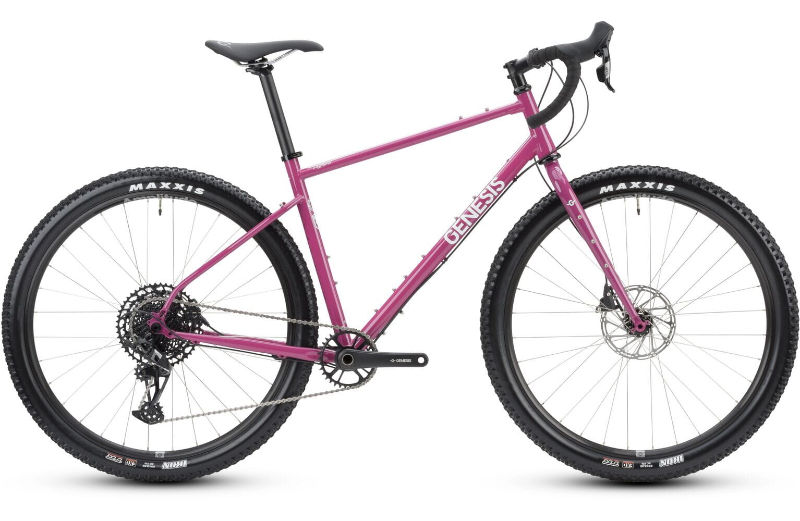

2026 Genesis Vagabond geometry
Full frame geometry for the 2026 Genesis Vagabond, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 569 | 370 | 74 | 69 | 155 | 533 | 400 | 744 | 47 | 440 | 1061 | 50 |
| SM | 592 | 385 | 74 | 69 | 180 | 555 | 450 | 782 | 47 | 440 | 1085 | 50 |
| MD | 617 | 415 | 74 | 69 | 160 | 592 | 495 | 810 | 72 | 450 | 1122 | 50 |
| LG | 640 | 430 | 74 | 69 | 185 | 614 | 530 | 839 | 72 | 450 | 1146 | 50 |
| XL | 659 | 445 | 74 | 69 | 205 | 634 | 580 | 876 | 72 | 450 | 1168 | 50 |
All measurements in millimetres unless marked (°) for angles.
