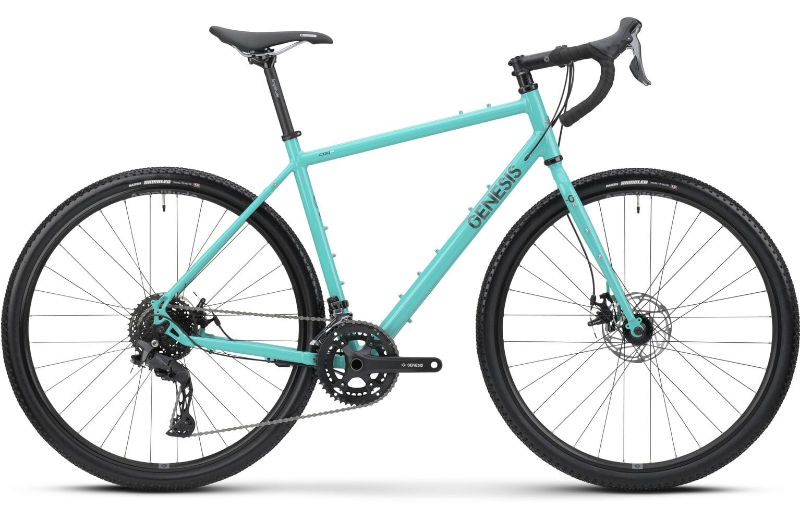

2026 Genesis CDA geometry
Full frame geometry for the 2026 Genesis CDA, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 561 | 375 | 74 | 70 | 115 | 536 | 470 | 73 | 435 | 1035 | 50 |
| SM | 584 | 375 | 73.5 | 71 | 135 | 547 | 500 | 73 | 435 | 1033 | 50 |
| MD | 603 | 385 | 73.5 | 71 | 155 | 564 | 530 | 73 | 435 | 1049 | 50 |
| LG | 624 | 395 | 73 | 71.5 | 175 | 586 | 550 | 73 | 435 | 1061 | 50 |
| XL | 645 | 405 | 72.5 | 72 | 195 | 608 | 580 | 73 | 435 | 1072 | 50 |
All measurements in millimetres unless marked (°) for angles.
