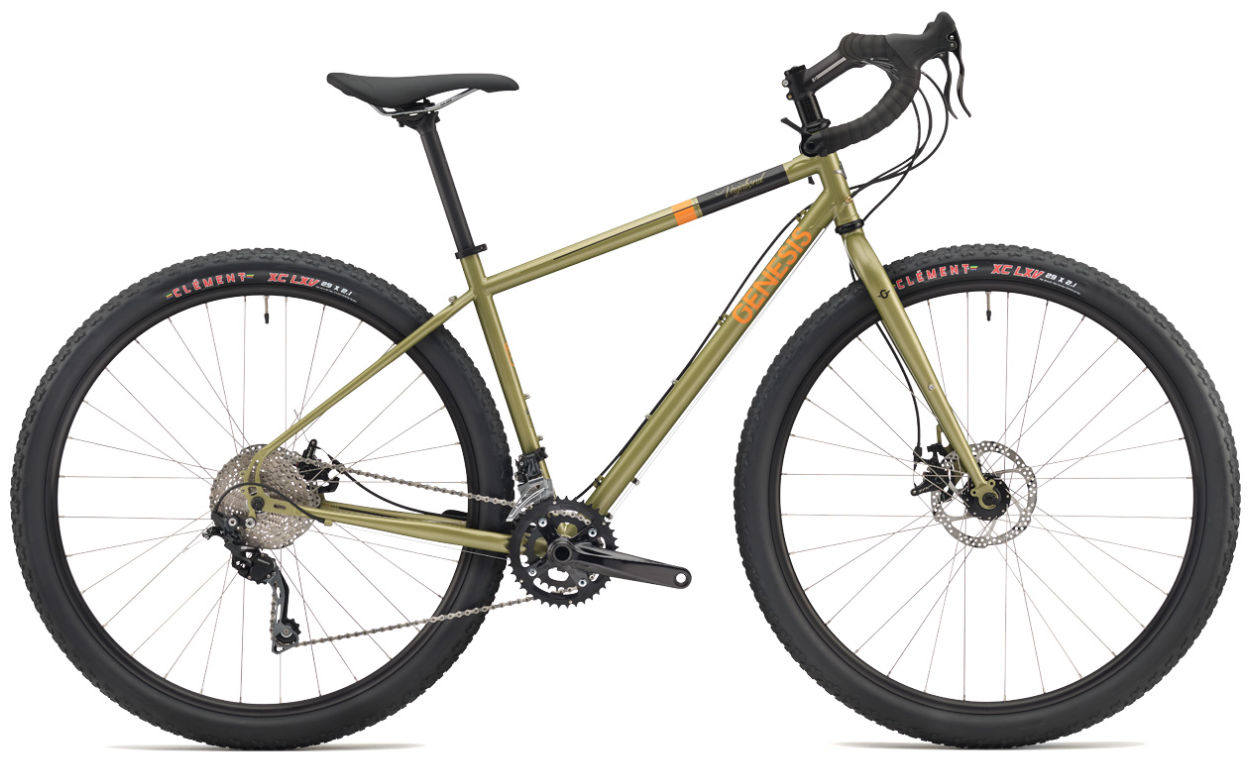

2018 Genesis Vagabond geometry
Full frame geometry for the 2018 Genesis Vagabond, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 589 | 355 | 72.5 | 71 | 120 | 541 | 430 | 775 | 73 | 445 | 1030 | 55 | 67 |
| M | 608 | 375 | 72.5 | 71 | 140 | 566 | 460 | 796 | 73 | 445 | 1056 | 55 | 67 |
| L | 627 | 395 | 72.5 | 71 | 160 | 593 | 490 | 830 | 73 | 445 | 1083 | 55 | 67 |
| XL | 646 | 410 | 72.5 | 71 | 180 | 614 | 520 | 839 | 73 | 445 | 1104 | 55 | 67 |
All measurements in millimetres unless marked (°) for angles.
