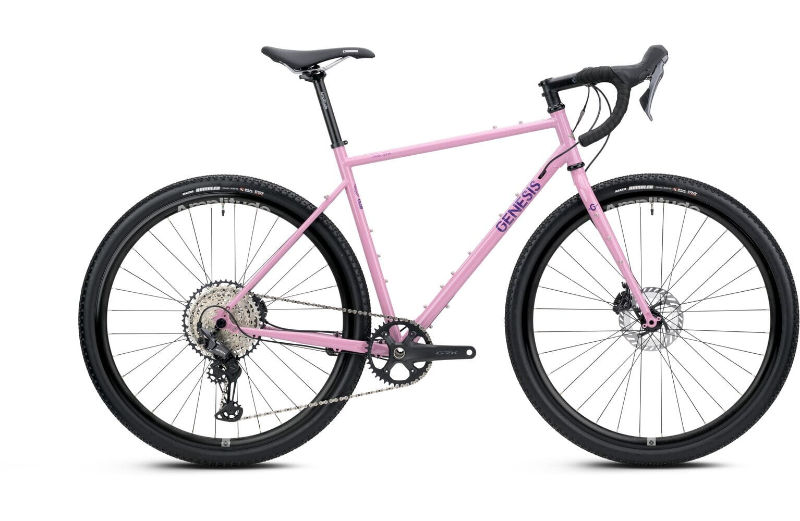

2026 Genesis Croix De Fer geometry
Full frame geometry for the 2026 Genesis Croix De Fer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 552 | 395 | 74 | 71 | 100 | 553 | 470 | 741 | 73 | 435 | 1042 | 50 |
| SM | 566 | 395 | 74 | 71 | 115 | 557 | 490 | 759 | 73 | 435 | 1046 | 50 |
| MD | 585 | 385 | 73.5 | 71 | 135 | 558 | 530 | 785 | 73 | 435 | 1043 | 50 |
| LG | 604 | 395 | 73.5 | 71 | 155 | 574 | 560 | 809 | 73 | 435 | 1059 | 50 |
| XL | 623 | 405 | 73.5 | 71 | 175 | 589 | 590 | 833 | 73 | 435 | 1076 | 50 |
All measurements in millimetres unless marked (°) for angles.
