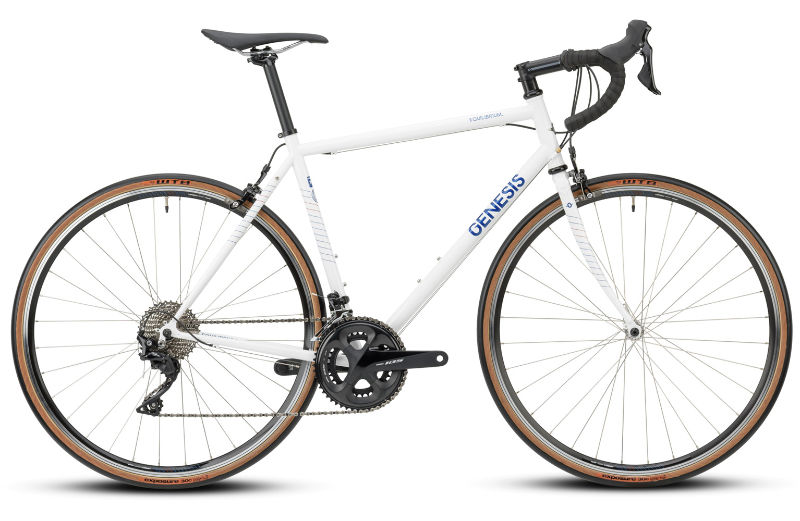

2026 Genesis Equilibrium geometry
Full frame geometry for the 2026 Genesis Equilibrium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 533 | 374 | 73.5 | 72 | 120 | 526 | 460 | 759 | 72 | 420 | 1009 | 50 |
| SM | 556 | 375 | 73.5 | 72 | 140 | 542 | 490 | 780 | 72 | 420 | 1009 | 50 |
| MD | 579 | 385 | 73.5 | 72 | 160 | 561 | 520 | 797 | 72 | 420 | 1016 | 50 |
| LG | 598 | 395 | 73 | 72 | 180 | 579 | 540 | 823 | 72 | 420 | 1032 | 50 |
All measurements in millimetres unless marked (°) for angles.
