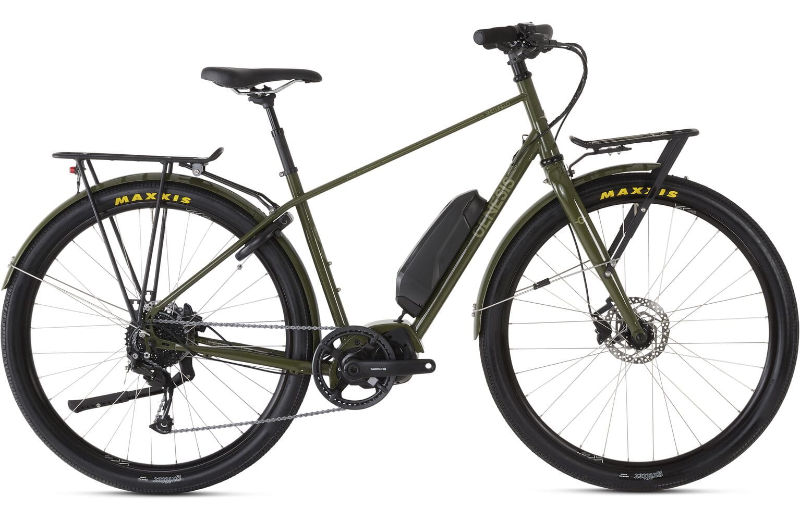

2026 Genesis Smithfield geometry
Full frame geometry for the 2026 Genesis Smithfield, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 627 | 375 | 72 | 71 | 165 | 445 | 430 | 764 | 65 | 465 | 1082 | 55 |
| MD | 646 | 395 | 72 | 71 | 185 | 465 | 470 | 790 | 65 | 465 | 1108 | 55 |
All measurements in millimetres unless marked (°) for angles.
