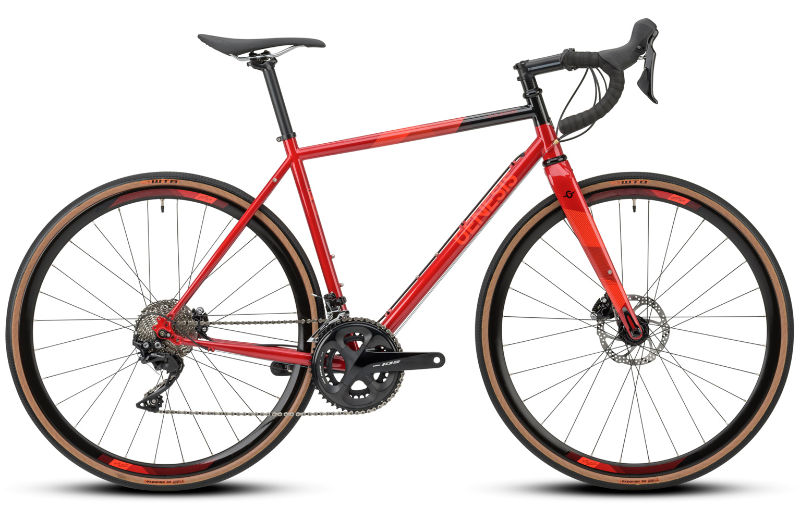

2026 Genesis Equilibrium Disc geometry
Full frame geometry for the 2026 Genesis Equilibrium Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 545 | 365 | 74 | 71 | 105 | 522 | 460 | 749 | 72 | 420 | 990 | 50 |
| L | 599 | 395 | 73 | 72 | 160 | 578 | 550 | 826 | 72 | 420 | 1019 | 50 |
| XL | 618 | 405 | 72.5 | 72 | 180 | 600 | 580 | 899 | 72 | 420 | 1035 | 50 |
All measurements in millimetres unless marked (°) for angles.
