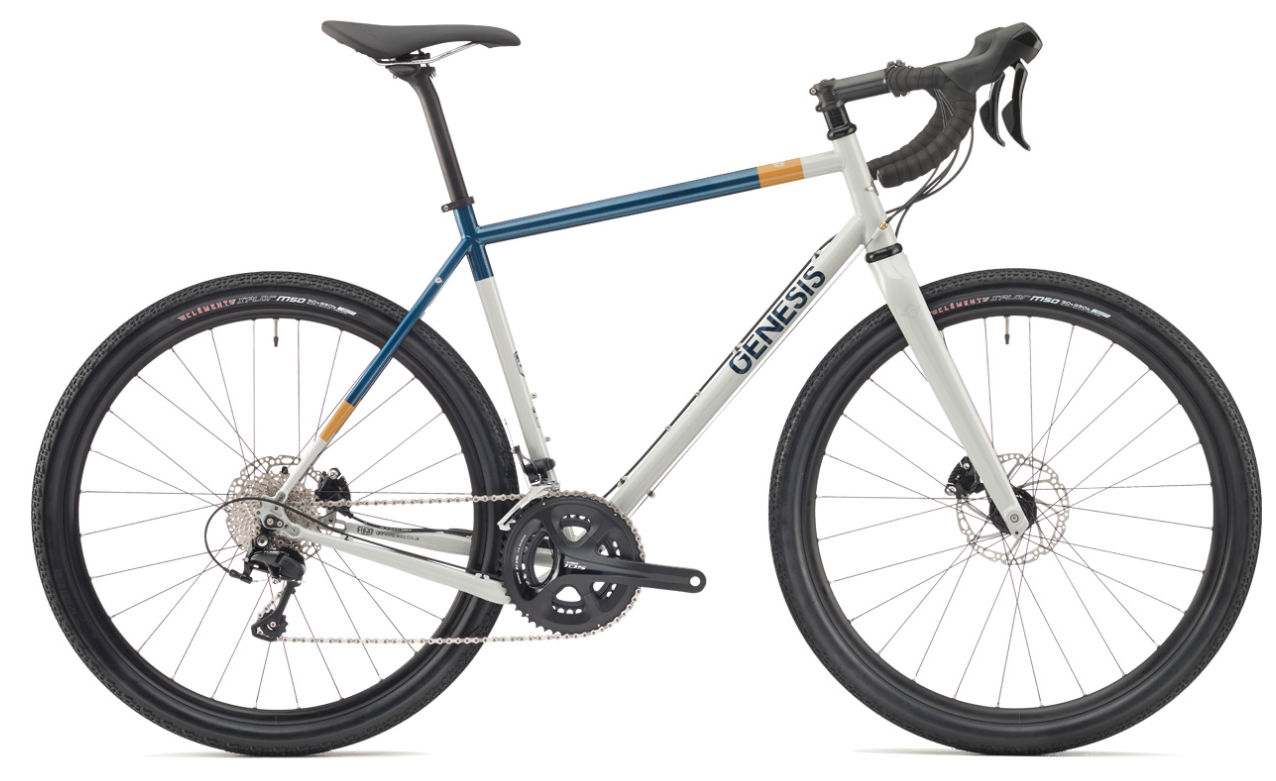

2018 Genesis Fugio geometry
Full frame geometry for the 2018 Genesis Fugio, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 556 | 365 | 73 | 70.5 | 125 | 535 | 470 | 756 | 65 | 425 | 1012 | 50 | 69 |
| S | 575 | 375 | 73 | 70.5 | 145 | 551 | 500 | 779 | 65 | 425 | 1029 | 50 | 69 |
| M | 594 | 385 | 73 | 70.5 | 165 | 567 | 530 | 801 | 65 | 425 | 1045 | 50 | 69 |
| L | 613 | 395 | 73 | 70.5 | 185 | 583 | 550 | 820 | 65 | 425 | 1062 | 50 | 69 |
| XL | 631 | 405 | 73 | 70.5 | 205 | 598 | 580 | 843 | 65 | 425 | 1077 | 50 | 69 |
All measurements in millimetres unless marked (°) for angles.
