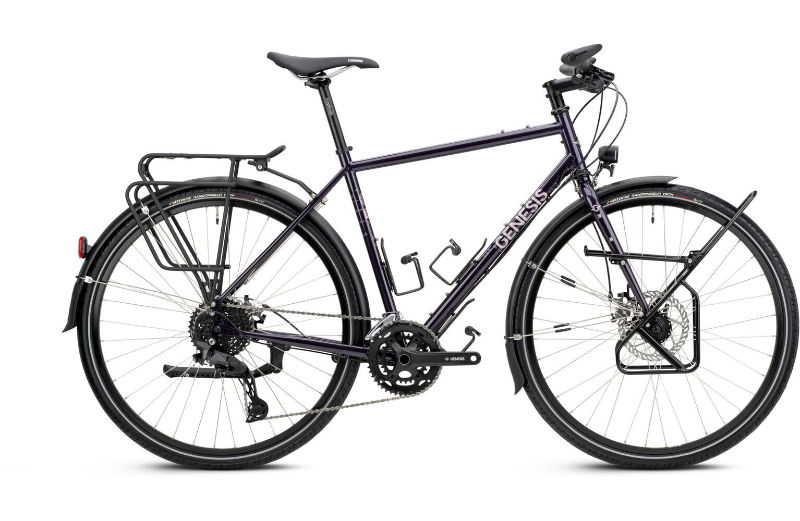

2026 Genesis Tour De Fer geometry
Full frame geometry for the 2026 Genesis Tour De Fer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 566 | 380 | 74 | 70.5 | 120 | 543 | 470 | 754 | 73 | 465 | 1072 | 55 |
| SM | 580 | 380 | 73 | 70.5 | 135 | 557 | 510 | 785 | 73 | 465 | 1077 | 55 |
| MD | 603 | 390 | 73.5 | 71.5 | 155 | 569 | 540 | 811 | 73 | 465 | 1085 | 55 |
| LG | 622 | 400 | 73.5 | 71.5 | 175 | 584 | 580 | 841 | 73 | 465 | 1101 | 55 |
| XL | 641 | 410 | 73.5 | 71.5 | 195 | 600 | 600 | 859 | 73 | 465 | 1117 | 55 |
All measurements in millimetres unless marked (°) for angles.
