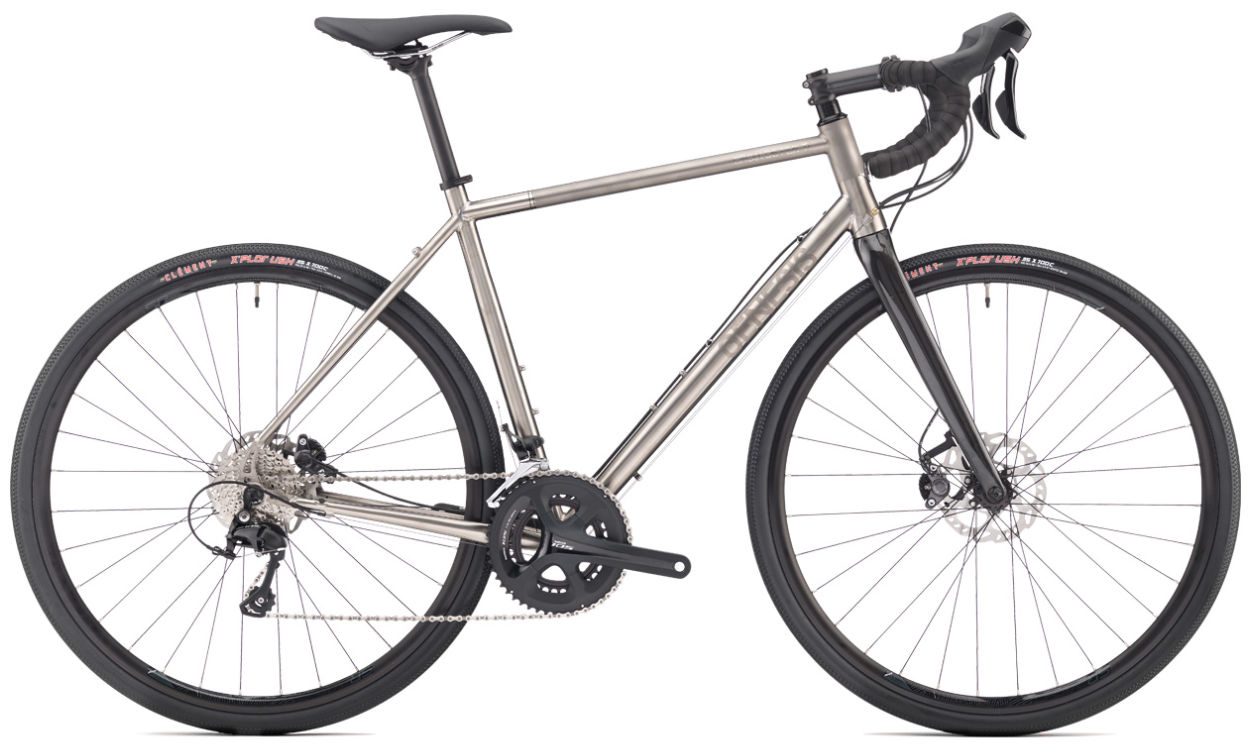

2018 Genesis Croix de Fer Ti geometry
Full frame geometry for the 2018 Genesis Croix de Fer Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 551 | 365 | 74 | 71 | 125 | 523 | 470 | 761 | 73 | 430 | 1006 | 50 | 69 |
| S | 570 | 375 | 73.5 | 71 | 145 | 544 | 500 | 784 | 73 | 430 | 1023 | 50 | 69 |
| M | 591 | 385 | 73.5 | 71.5 | 165 | 560 | 530 | 808 | 73 | 430 | 1035 | 50 | 66 |
| L | 610 | 395 | 73 | 71.5 | 185 | 582 | 550 | 826 | 73 | 430 | 1051 | 50 | 66 |
| XL | 631 | 405 | 72.5 | 72 | 205 | 604 | 580 | 850 | 73 | 430 | 1063 | 50 | 63 |
All measurements in millimetres unless marked (°) for angles.
