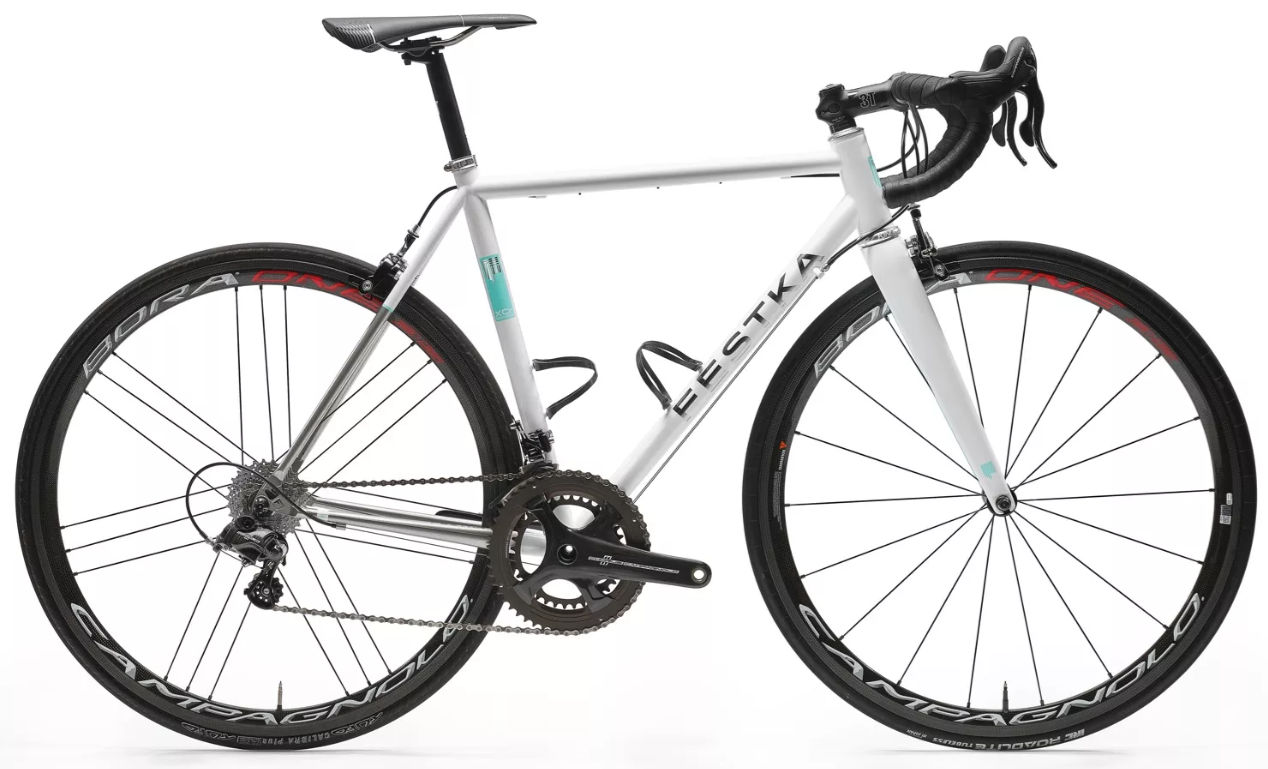

2018 Festka XCR Modern geometry

Name: 2018 Festka XCR Modern
Brand: Festka

Full frame geometry for the 2018 Festka XCR Modern, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
50 Race	502	358	74.5	70	99	500	743	68	574	403	967	71
51 Race	516	365	74.5	71	112	510	761	68	569	403	962	72
50 Sport	519	354	74.5	70	117	500	760	68	575	403	968	71
52 Race	527	372	74.5	71.5	121	520	776	68	575	403	968	68
51 Sport	533	360	74.5	71	129	510	778	68	570	403	963	72
53 Race	538	375	74	72	131	530	793	68	577	405	972	65
52 Sport	542	368	74.5	71.5	137	520	792	68	576	403	969	68
54 Race	546	383	74	72.5	137	540	805	68	583	405	978	62
53 Sport	552	371	74	72	145	530	807	68	577	405	972	65
55 Race	555	390	74	73	145	550	819	68	588	405	983	59
54 Sport	560	379	74	72.5	151	540	815	68	583	405	978	62
56 Race	564	393	73.5	73	155	560	830	68	594	406	990	59
55 Sport	570	386	74	73	161	550	825	68	589	405	984	59
57 Race	572	401	73.5	73	162	570	838	68	604	406	1000	59
56 Sport	579	388	73.5	73	170	560	836	68	594	406	990	59
58 Race	579	409	73.5	73	170	580	844	68	614	406	1010	59
57 Sport	586	396	73.5	73	177	570	842	68	604	406	1000	59
59 Race	590	410	73	73	181	590	857	68	618	408	1017	59
58 Sport	593	404	73.5	73	185	580	849	68	614	406	1010	59
60 Race	601	417	73	73	193	600	869	68	628	408	1027	59
59 Sport	605	405	73	73	197	590	863	68	618	408	1017	59
61 Race	614	423	73	73	206	610	882	68	638	408	1037	59
60 Sport	615	412	73	73	208	600	873	68	628	408	1027	59
61 Sport	625	419	73	73	219	610	883	68	638	408	1037	59

All measurements in millimetres unless marked (°) for angles.
