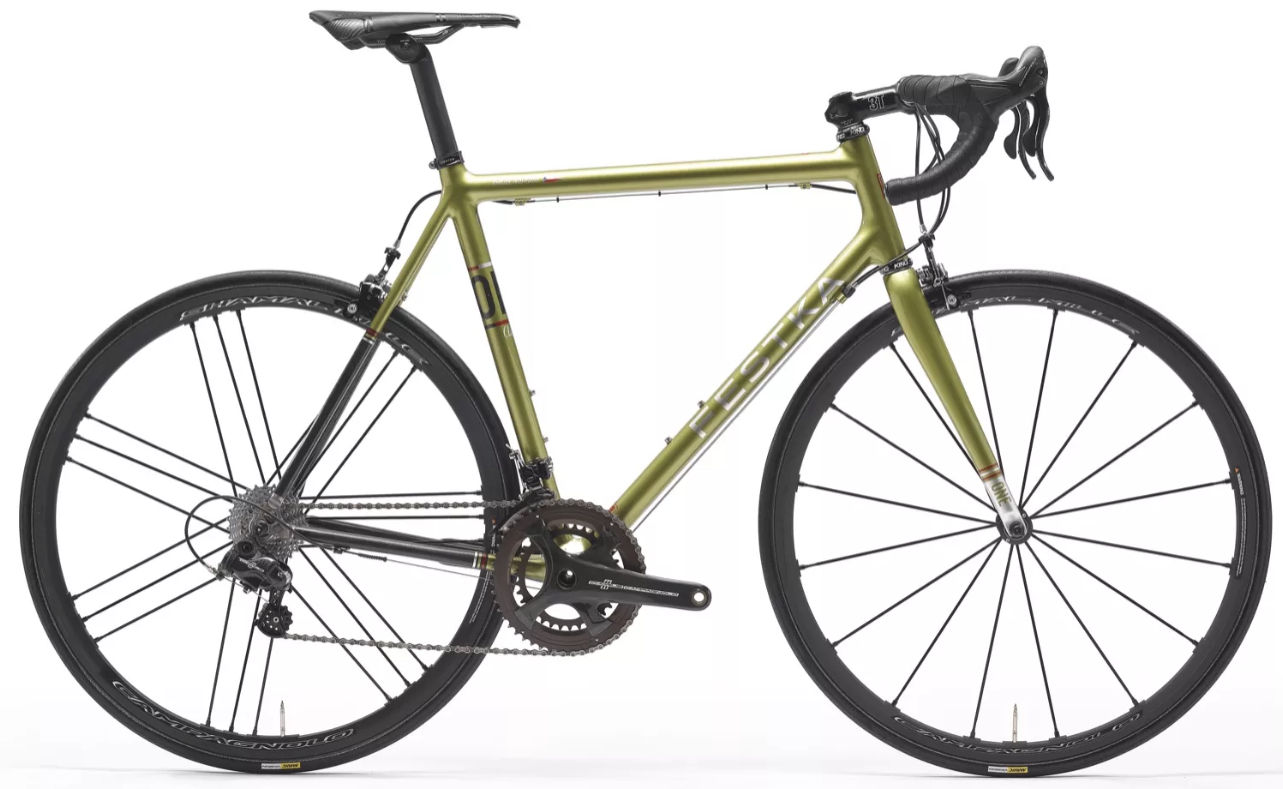

2018 Festka One Classic geometry

Name: 2018 Festka One Classic
Brand: Festka

Full frame geometry for the 2018 Festka One Classic, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
50 Race	497	359	74.5	70	96	500	738	68	573	404	967	71
51 Race	509	367	74.5	71	105	510	753	68	576	404	970	64
50 Sport	512	355	74.5	70	112	500	752	68	574	404	968	71
52 Race	518	374	74.5	71.5	113	520	766	68	582	404	976	61
51 Sport	523	363	74.5	71	120	510	767	68	577	404	971	64
53 Race	528	377	74	72	122	530	782	68	581	406	977	65
52 Sport	533	370	74.5	71.5	128	520	782	68	583	404	977	61
54 Race	537	385	74	72.5	129	540	795	68	582	406	978	62
53 Sport	542	373	74	72	136	530	797	68	581	406	977	65
55 Race	546	393	74	73	136	550	809	68	588	406	984	59
54 Sport	551	381	74	72.5	143	540	805	68	583	406	979	62
56 Race	555	395	73.5	73	146	560	819	68	593	408	991	59
55 Sport	560	389	74	73	151	550	814	68	588	406	984	59
57 Race	562	403	73.5	73	147	570	827	68	603	408	1001	59
56 Sport	568	391	73.5	73	160	560	824	68	594	408	992	59
58 Race	569	411	73.5	73	154	580	834	68	613	408	1012	59
57 Sport	576	399	73.5	73	168	570	831	68	603	408	1001	59
59 Race	580	413	73	73	173	590	847	68	617	409	1017	59
58 Sport	583	407	73.5	73	175	580	838	68	613	408	1012	59
60 Race	590	420	73	73	183	600	857	68	627	409	1027	59
59 Sport	595	408	73	73	188	590	852	68	617	409	1017	59
61 Race	604	425	73	73	198	610	871	68	637	409	1037	59
60 Sport	605	415	73	73	198	600	862	68	627	409	1027	59
61 Sport	618	421	73	73	212	610	875	68	637	409	1037	59

All measurements in millimetres unless marked (°) for angles.
