2018 Festka · R

2018 Festka Asphalt geometry

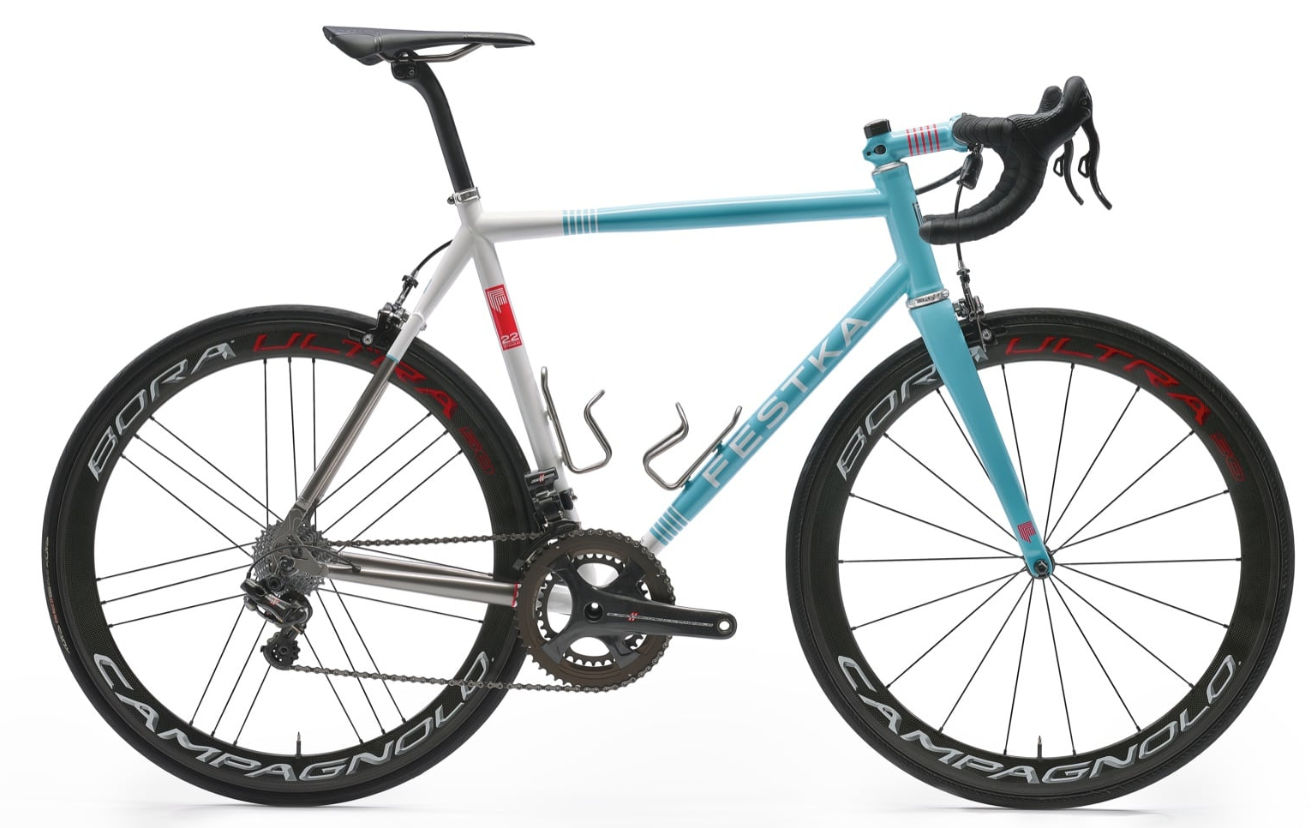

Name: 2018 Festka Asphalt
Brand: Festka

Full frame geometry for the 2018 Festka Asphalt, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
50 Race	500	359	74.5	70	97	500	738	68	566	405	961	78
51 Race	512	366	74.5	71	106	510	754	68	569	405	964	72
50 Sport	517	354	74.5	70	115	500	756	68	567	405	962	78
52 Race	524	373	74.5	71.5	116	520	771	68	575	405	970	68
51 Sport	528	362	74.5	71	123	510	771	68	570	405	965	72
53 Race	533	376	74	72	125	530	786	68	577	406	973	65
52 Sport	538	369	74.5	71.5	131	520	785	68	576	405	971	68
54 Race	542	384	74	72.5	132	540	799	68	583	406	979	62
53 Sport	547	372	74	72	140	530	800	68	577	406	973	65
55 Race	551	392	74	73	139	550	812	68	588	407	985	59
54 Sport	557	379	74	72.5	148	540	810	68	583	406	979	62
56 Race	560	394	73.5	73	149	560	823	68	594	408	992	59
55 Sport	565	387	74	73	155	550	818	68	589	407	986	59
57 Race	567	401	73.5	73	156	570	831	68	604	408	1002	59
56 Sport	574	390	73.5	73	164	560	828	68	594	408	992	59
58 Race	574	410	73.5	73	164	580	837	68	613	408	1012	59
57 Sport	583	397	73.5	73	173	570	838	68	604	408	1002	59
59 Race	585	411	73	73	175	590	850	68	617	410	1018	59
58 Sport	588	406	73.5	73	179	580	842	68	613	408	1012	59
60 Race	596	418	73	73	187	600	861	68	628	410	1029	59
59 Sport	600	407	73	73	191	590	856	68	617	410	1018	59
61 Race	609	424	73	73	200	610	875	68	638	410	1039	59
60 Sport	610	414	73	73	202	600	866	68	628	410	1029	59
61 Sport	621	420	73	73	213	610	877	68	638	410	1039	59

All measurements in millimetres unless marked (°) for angles.
