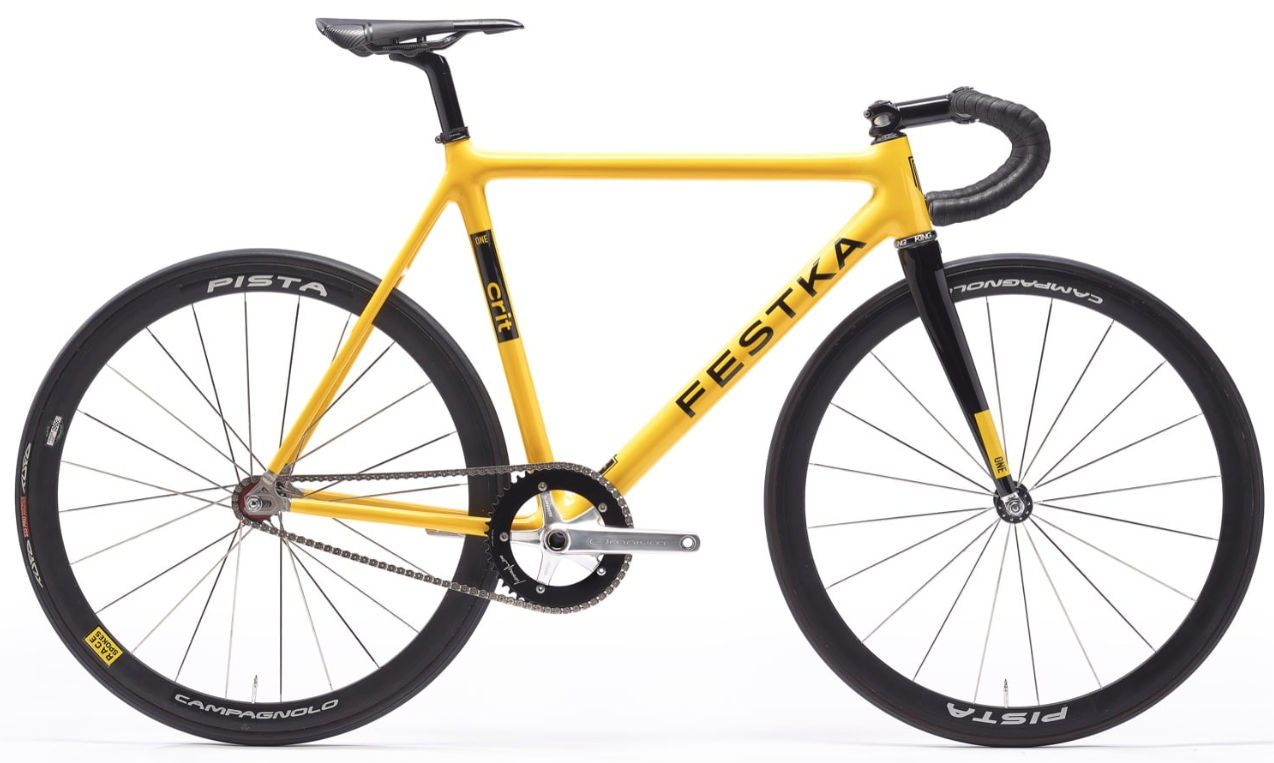

2018 Festka One Crit geometry
Full frame geometry for the 2018 Festka One Crit, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 515 | 492 | 381 | 75 | 72 | 100 | 515 | 755 | 46 | 564 | 386 | 945 | 74 |
| 525 | 513 | 385 | 75 | 72 | 122 | 525 | 790 | 46 | 576 | 386 | 957 | 74 |
| 535 | 521 | 394 | 75 | 73 | 127 | 535 | 800 | 46 | 577 | 386 | 958 | 67 |
| 545 | 526 | 403 | 75 | 74 | 130 | 545 | 807 | 46 | 579 | 386 | 960 | 61 |
| 555 | 537 | 410 | 75 | 74 | 141 | 555 | 818 | 46 | 589 | 386 | 970 | 61 |
| 565 | 541 | 419 | 75 | 74 | 145 | 565 | 825 | 46 | 599 | 386 | 980 | 61 |
| 585 | 555 | 436 | 75 | 74 | 160 | 585 | 837 | 46 | 619 | 386 | 1001 | 61 |
| 605 | 586 | 442 | 74.5 | 74.5 | 190 | 605 | 869 | 46 | 629 | 386 | 1011 | 58 |
All measurements in millimetres unless marked (°) for angles.
