2018 Festka · RD

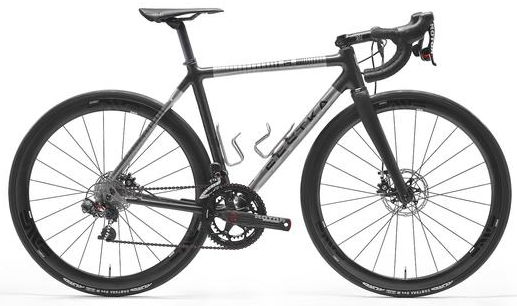

2018 Festka Doppler Disc geometry

Name: 2018 Festka Doppler Disc
Brand: Festka

Full frame geometry for the 2018 Festka Doppler Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
50 Race	493	360	74.5	70	90	500	733	68	573	404	967	71
51 Race	504	368	74.5	71	98	510	748	68	575	404	969	64
50 Sport	507	357	74.5	70	105	500	747	68	574	404	968	71
52 Race	514	376	74.5	71.5	106	520	762	68	582	404	976	61
51 Sport	518	364	74.5	71	113	510	762	68	576	404	970	64
53 Race	523	379	74	72	115	530	777	68	576	406	972	65
52 Sport	528	372	74.5	71.5	121	520	776	68	583	404	977	61
54 Race	532	387	74	72.5	122	540	791	68	582	406	978	62
53 Sport	538	374	74	72	130	530	792	68	577	406	973	65
55 Race	541	394	74	73	130	550	804	68	598	406	994	59
54 Sport	546	378	74	72.5	137	540	801	68	583	406	979	62
56 Race	550	397	73.5	73	139	560	815	68	593	408	991	59
55 Sport	556	390	74	73	145	550	810	68	588	406	984	59
57 Race	558	405	73.5	73	147	570	822	68	603	408	1001	59
56 Sport	564	393	73.5	73	154	560	819	68	594	408	992	59
58 Race	564	413	73.5	73	154	580	829	68	613	408	1012	59
57 Sport	572	400	73.5	73	162	570	827	68	603	408	1001	59
59 Race	576	414	73	73	166	590	842	68	617	409	1017	59
58 Sport	578	408	73.5	73	169	580	833	68	612	408	1011	59
60 Race	587	421	73	73	177	600	853	68	627	409	1027	59
59 Sport	590	410	73	73	181	590	846	68	617	409	1017	59
60 Sport	600	417	73	73	192	600	857	68	627	409	1027	59
61 Race	600	427	73	73	191	610	867	68	637	409	1037	59
61 Sport	614	422	73	73	206	610	871	68	637	409	1037	59

All measurements in millimetres unless marked (°) for angles.
