2018 Festka · R

2018 Festka One geometry

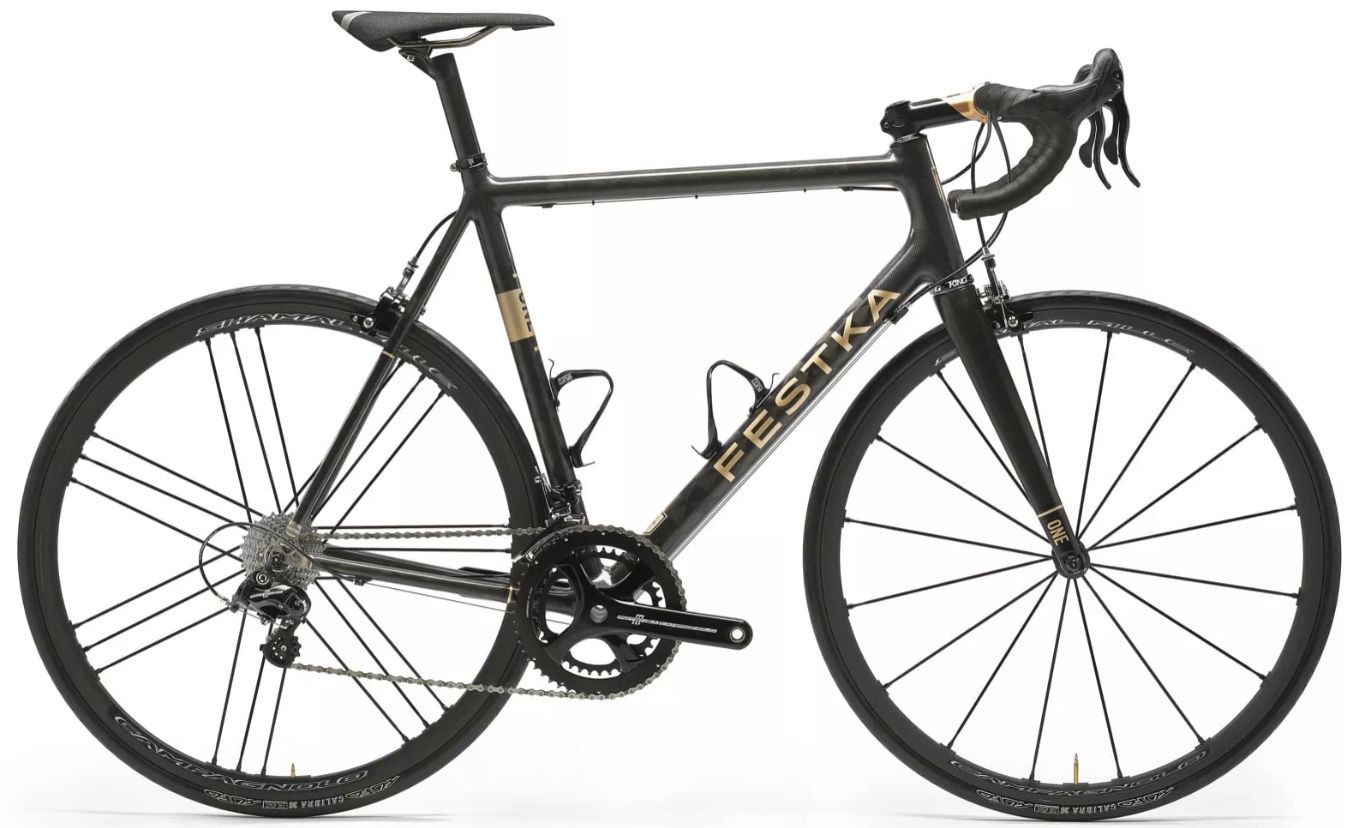

Name: 2018 Festka One
Brand: Festka

Full frame geometry for the 2018 Festka One, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
50 Race	503	357	74.5	70	102	500	743	68	566	404	960	78
51 Race	515	365	74.5	71	110	510	759	68	569	404	963	72
50 Sport	520	353	74.5	70	119	500	761	68	567	404	961	78
52 Race	527	372	74.5	71.5	121	520	775	68	575	404	969	68
51 Sport	531	361	74.5	71	127	510	776	68	570	404	964	72
53 Race	536	375	74	72	129	530	790	68	576	406	972	65
52 Sport	541	368	74.5	71.5	135	520	790	68	576	404	970	68
54 Race	545	383	74	72.5	136	540	804	68	583	406	979	62
53 Sport	550	371	74	72	144	530	805	68	577	406	973	65
55 Race	554	391	74	73	144	550	818	68	588	406	984	59
54 Sport	560	379	74	72.5	152	540	815	68	583	406	979	62
56 Race	563	393	73.5	73	153	560	828	68	594	408	992	59
55 Sport	569	386	74	73	159	550	824	68	589	406	985	59
57 Race	570	401	73.5	73	161	570	835	68	604	408	1002	59
56 Sport	577	389	73.5	73	168	560	833	68	594	408	992	59
58 Race	577	409	73.5	73	168	580	842	68	613	408	1012	59
57 Sport	585	397	73.5	73	176	570	841	68	604	408	1002	59
59 Race	588	410	73	73	179	590	855	68	617	409	1017	59
58 Sport	591	405	73.5	73	183	580	847	68	613	408	1012	59
60 Race	599	417	73	73	191	600	866	68	627	409	1027	59
59 Sport	603	406	73	73	195	590	860	68	617	409	1017	59
61 Race	612	423	73	73	205	610	879	68	637	409	1037	59
60 Sport	613	413	73	73	206	600	871	68	627	409	1027	59
61 Sport	624	419	73	73	217	610	881	68	637	409	1037	59

All measurements in millimetres unless marked (°) for angles.
