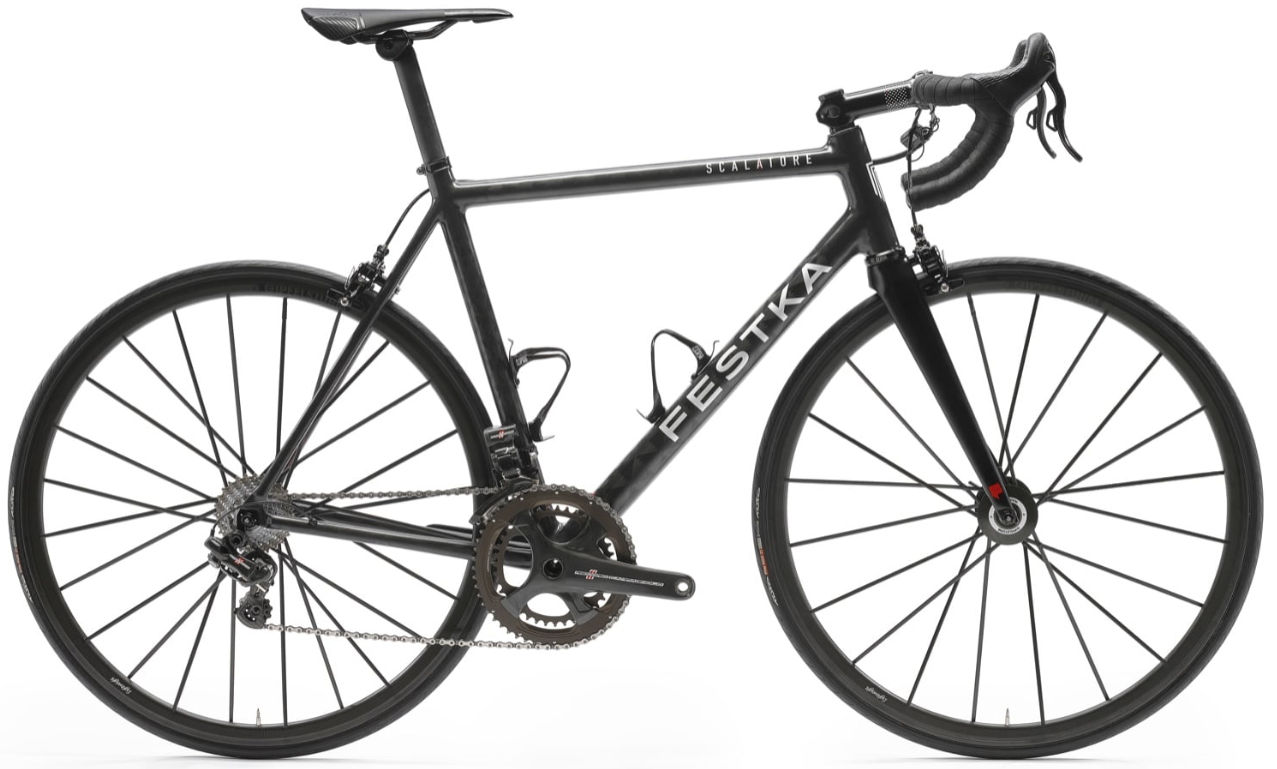

2018 Festka Scalatore geometry

Name: 2018 Festka Scalatore
Brand: Festka

Full frame geometry for the 2018 Festka Scalatore, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
50 Race	503	357	74.5	70	103	500	743	68	569	404	963	75
51 Race	515	365	74.5	71	111	510	759	68	572	404	966	68
50 Sport	520	353	74.5	70	121	500	761	68	571	404	965	75
52 Race	524	373	74.5	71.5	119	520	772	68	578	404	972	65
51 Sport	531	361	74.5	71	128	510	776	68	573	404	967	68
53 Race	534	376	74	72	128	530	788	68	580	406	976	62
52 Sport	541	368	74.5	71.5	137	520	790	68	579	404	973	65
54 Race	545	383	74	72.5	137	540	804	68	586	406	982	59
53 Sport	550	371	74	72	145	530	805	68	580	406	976	62
55 Race	554	391	74	73	145	550	818	68	591	406	987	56
54 Sport	559	378	74	72.5	153	540	814	68	591	406	987	59
56 Race	562	393	73.5	73	154	560	827	68	596	408	994	56
55 Sport	569	386	74	73	160	550	824	68	592	406	988	56
57 Race	570	401	73.5	73	162	570	835	68	607	408	1005	56
58 Race	576	409	73.5	73	168	580	841	68	616	408	1015	56
56 Sport	577	388	73.5	73	170	560	833	68	596	408	994	56
57 Sport	585	397	73.5	73	177	570	841	68	607	408	1005	56
59 Race	590	410	73	73	183	590	857	68	621	409	1021	56
58 Sport	591	405	73.5	73	184	580	847	68	616	408	1015	56
60 Race	600	417	73	73	193	600	867	68	631	409	1031	56
59 Sport	603	406	73	73	196	590	860	68	621	409	1021	56
60 Sport	613	412	73	73	207	600	871	68	631	409	1031	56
61 Race	614	422	73	73	208	610	881	68	641	409	1041	56
61 Sport	624	419	73	73	218	610	881	68	641	409	1041	56

All measurements in millimetres unless marked (°) for angles.
