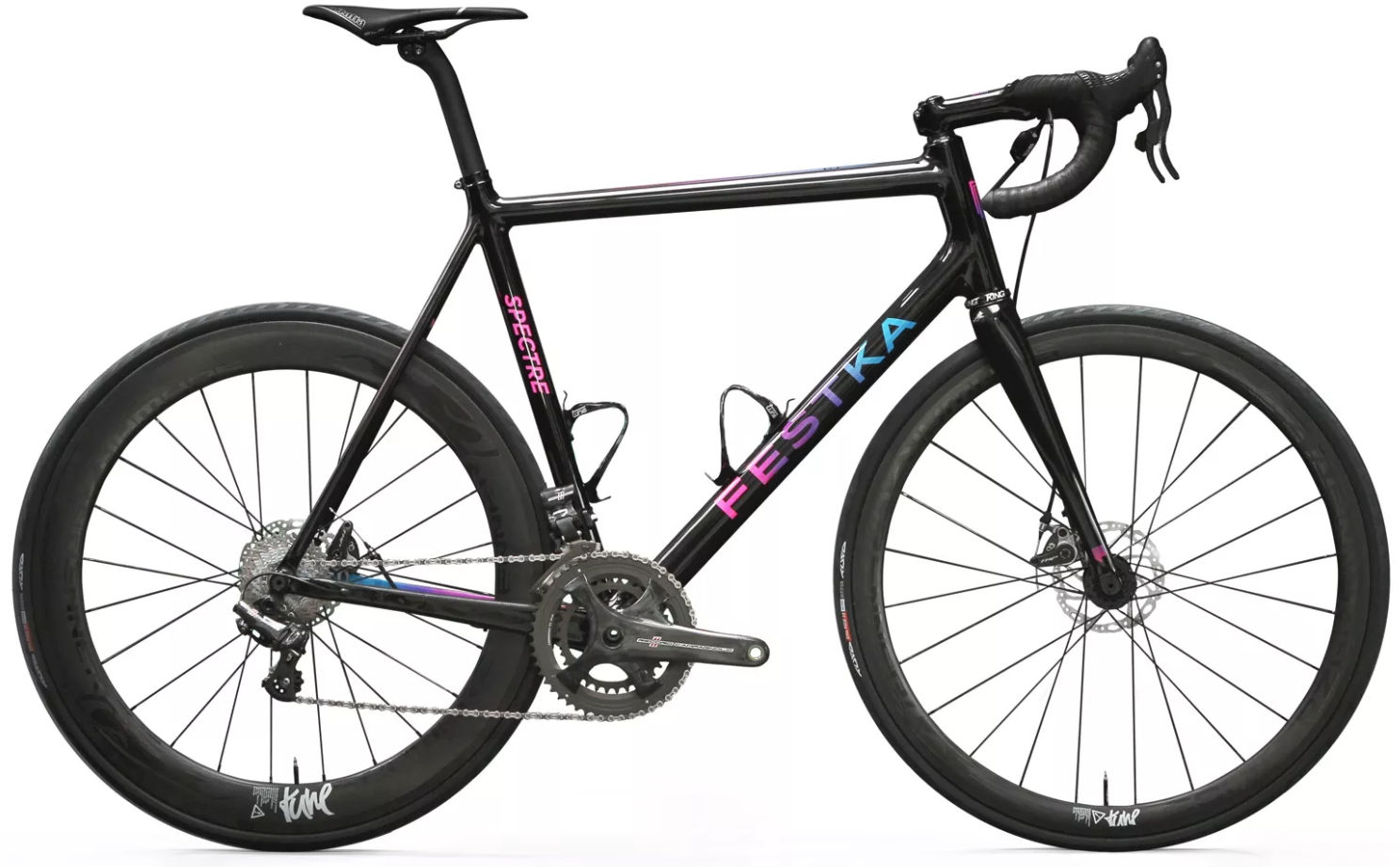

2018 Festka Spectre Disc geometry

Name: 2018 Festka Spectre Disc
Brand: Festka

Full frame geometry for the 2018 Festka Spectre Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Trail (mm)
50 Race	506	356	74.5	70	104	500	744	68	568	404	962	76
51 Race	518	364	74.5	71	114	510	760	68	571	404	965	69
50 Sport	520	353	74.5	70	119	500	754	68	569	404	963	76
52 Race	526	372	74.5	71.5	120	520	772	68	577	404	971	66
51 Sport	531	360	74.5	71	127	510	770	68	572	404	966	69
53 Race	536	375	74	72	129	530	788	68	576	406	972	63
52 Sport	540	368	74.5	71.5	135	520	782	68	578	404	972	66
54 Race	546	383	74	72.5	137	540	802	68	585	406	981	60
53 Sport	551	371	74	72	144	530	798	68	579	406	975	63
55 Race	555	390	74	73	144	550	816	68	588	406	984	57
54 Sport	560	378	74	72.5	152	540	812	68	585	406	981	60
56 Race	563	393	73.5	73	153	560	825	68	596	408	994	57
55 Sport	569	386	74	73	159	550	821	68	591	406	987	57
57 Race	571	401	73.5	73	161	570	834	68	606	408	1004	57
56 Sport	577	389	73.5	73	168	560	831	68	596	408	994	57
58 Race	577	409	73.5	73	168	580	840	68	615	408	1014	57
57 Sport	585	396	73.5	73	176	570	839	68	606	408	1004	57
59 Race	589	410	73	73	180	590	853	68	620	409	1020	57
58 Sport	592	404	73.5	73	183	580	845	68	615	408	1014	57
60 Race	600	417	73	73	191	600	865	68	630	409	1030	57
59 Sport	603	406	73	73	195	590	858	68	620	409	1020	57
61 Race	613	423	73	73	205	610	878	68	640	409	1040	57
60 Sport	615	412	73	73	207	600	870	68	630	409	1030	57
61 Sport	624	419	73	73	217	610	879	68	640	409	1040	57

All measurements in millimetres unless marked (°) for angles.
